ONSEMI BCP52 Power Transistor
The BCP52 is a PNP bipolar transistor suitable for general-purpose medium power amplification and switching applications. It can handle collector currents up to 1A, with a collector-emitter voltage of -60 V and a maximum junction temperature of 150°C. Designed from process 78, this transistor is ideal for power management and industrial uses, offering reliable performance in various circuits. It features a SOT-223 package, with thermal resistance of 83.3°C/W, total dissipation of 1.5 W, and key electrical parameters including a DC gain up to 250. It provides robust switching capabilities and stability for medium power amplification tasks.
ONSEMI BCP52 Power Transistor Specifications:
- Collector-Emitter Voltage: -60 V
- Collector-Base Voltage: -60 V
- Emitter-Base Voltage: 5 V
- Collector Current: -1.2 A
- Junction Temperature Range: -55°C to 150°C
- Total Device Dissipation: 1.5 W
- Thermal Resistance Junction to Ambient: 83.3°C/W
- Power Dissipation: 1.5 W

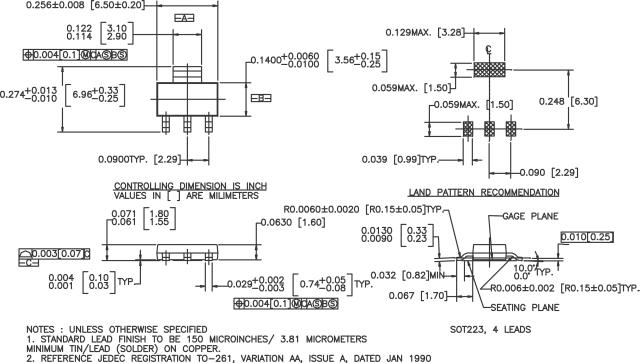

- Package: SOT-223
- Vceo: -60 V
- Vogo: -60 V
- VeBo: 5 V
- Ic: -1.2 A
- Gain Bandwidth Product: variable up to 250 MHz
- Collector-Emitter Saturation Voltage: -0.5 V
- Base-Emitter On Voltage: -1.0 V
Buy the Fairchild Series Transistor: BCP52 PNP Medium Power Amplifier - BCP52
Order the Fairchild BCP52 power transistor online today and enjoy fast delivery, genuine quality, and reliable performance for your industrial and power management projects. This versatile PNP transistor handles collector currents up to 1A, with operating voltage of -60 V and temperature range from -55°C to 150°C. Perfect for switching and amplification, its SOT-223 package offers thermal stability and durability. Ensure your circuit's success by purchasing authentic Fairchild components online from authorized distributors for consistent quality and performance.
Buy Fairchild BCP52 transistor now and experience unmatched reliability and performance in power management and industrial applications.
Frequently Asked Questions
Where can I buy ONSEMI BCP52?
You can click on the BUY or RFQ button to purchase BCP52 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part BCP52?
You can download the BCP52 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of BCP52?
ONSEMI
