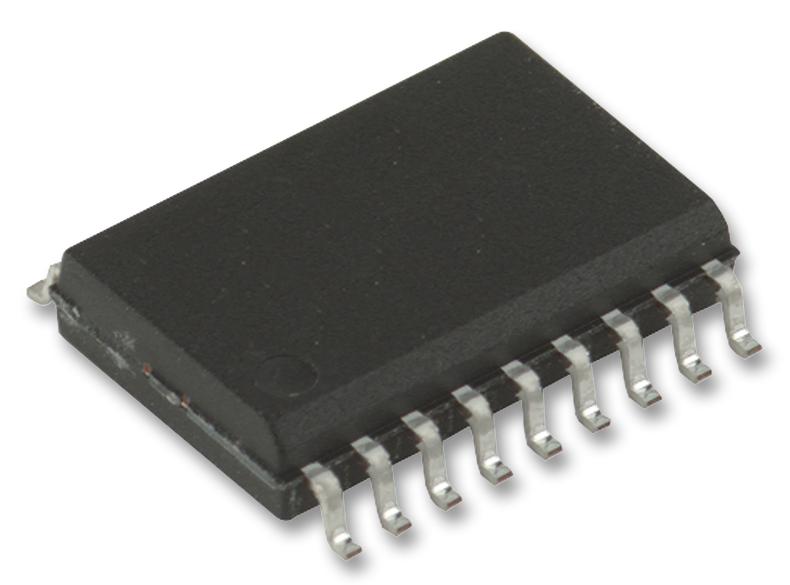

ONSEMI MC74ACT377DWR2G Octal D Flip-Flop
The octal D flip-flop with clock enable is a fully edge-triggered, high-speed digital component with eight D-type flip-flops. It features a common buffered clock input that loads all flip-flops simultaneously when clock enable is low, ensuring synchronized data transfer. Designed for addressable registers and data synchronization applications, it offers source/sink output currents of 24 mA and TTL compatibility. Available in Pb-free packages, the device ensures reliable performance in high-speed digital systems, supporting robust operation with a wide temperature range and ensure signal integrity across multiple applications.
ONSEMI MC74ACT377DWR2G Octal D Flip-Flop Specifications:
- Package Options: PDIP-20, SOIC-20W, TSSOP-20, SOEIAJ-20
- Number of Flip-Flops: 8
- Clock Enable: Active LOW
- Common Buffered Clock Input (CP)
- Output Source/Sink Current: 24 mA
- DC Supply Voltage: -0.5 to +7.0 V
- Input Voltage Range: 0.5 to VCC + 0.5 V
- Storage Temperature: -65°C to +150°C
- Maximum Operating Temperature: 85°C
- Maximum Input/Output Current: 50 mA per pin
- Maximum Power Dissipation: varies by package
- ESD Withstand Voltage: >2000 V
- Maximum Clock Frequency: up to 50 MHz
- Propagation Delay: approximately 23 ns (typical for AC operation)
- Operating Ambient Temperature: 40°C to 85°C
- Capacitance: Input Capacitance 45 pF, Power Capacitance 90 pF
Buy the Buy ON Semiconductor Octal D Flip-Flop Part Number MC74ACT377DWR2G Online
Enhance your digital system with the reliable ON Semiconductor Octal D Flip-Flop. Designed for high-speed addressable registers and data synchronization, this device offers TTL compatible inputs, common clock, and robust source/sink outputs of 24 mA. Featuring Pb-free packaging options, it supports operating temperatures up to 85°C and ensures signal integrity in a variety of applications. This versatile component is ideal for high-speed, high-reliability digital systems, providing synchronized data transfer and seamless integration in your projects. Order online now and ensure dependable performance.
Order your ON Semiconductor SeriesMC74ACT377DWR2G high-speed octal D flip-flop today and ensure reliable, synchronized data storage for your digital projects.
Frequently Asked Questions
Where can I buy ONSEMI MC74ACT377DWR2G?
You can click on the BUY or RFQ button to purchase MC74ACT377DWR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC74ACT377DWR2G?
You can download the MC74ACT377DWR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC74ACT377DWR2G?
ONSEMI
