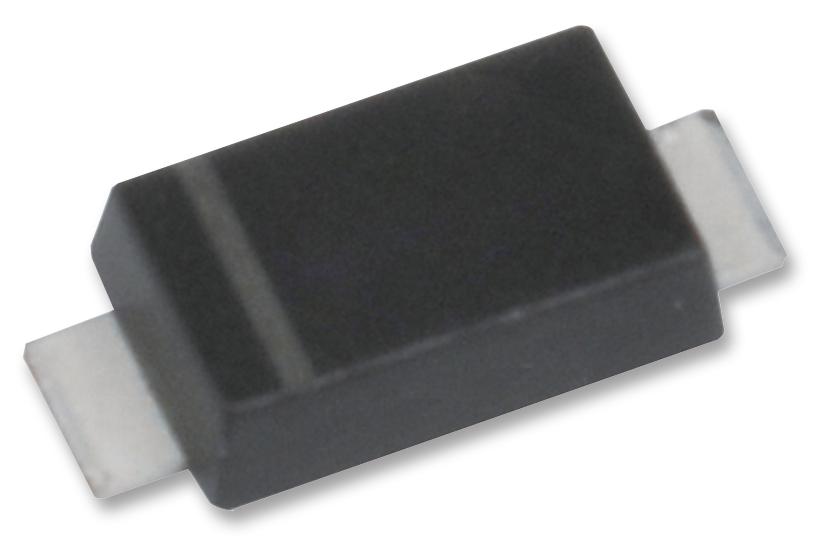

ONSEMI MM3Z12VC Zener Diode
This Zener diode offers a wide voltage range from 2.4V to 75V and is available in a very small, thin SMD package suitable for compact electronic designs. It features high power dissipation of 200 mW and a maximum junction temperature of 150°C for reliable operation. The device includes a ±5% tolerance in VZ (Zener Voltage) and is Pb-free with a matte tin finish. Ideal for voltage regulation, protection circuits, and voltage reference applications, it is packaged in a tape and reel for easy surface-mount assembly and complies with JEITA standards for quality and durability.
ONSEMI MM3Z12VC Zener Diode Specifications:
- Maximum Power Dissipation: 200 mW
- Maximum Junction Temperature: 150°C
- Storage Temperature Range: -65°C to +150°C
- Thermal Resistance Junction to Ambient: 595°C/W
- Zener Voltage Range: 2.4V to 75V
- Tolerance: ±5% (C Series)
- Package: SOD-323F, Small and Thin Surface Mount
- Finish: Matte Tin (Pb-Free)
- Operating Current: up to maximum regulator current per device
- Device Marking: Refer to datasheet for specific markings
- Packaged in Tape & Reel, Reel Size: 12mm, Quantity: 3,000
- Package Dimensions: 1.30+0.15 mm; Land Pattern Compatible with JEITA Standard
- Standards: Compliant with JEITA SC90, RoHS compatible
Buy the Buy ON Semiconductor Zener Diode Part Number MM3Z12VC Online
Order the ON Semiconductor MM3Z12VC Zener diode online today to ensure reliable voltage regulation in your circuits. This compact, surface-mount device features a voltage range from 2.4V to 75V, a power rating of 200mW, and a maximum junction temperature of 150°C. Its Pb-free matte tin finish and small SOD-323F package make it ideal for space-constrained designs and high-volume assembly. Purchase from authorized distributors or directly from ON Semiconductor for genuine parts, full warranty coverage, and access to the latest technical support to enhance your electronic projects.
Buy ON Semiconductor MM3Z12VC now and experience unmatched reliability and performance for your voltage regulation needs.
Frequently Asked Questions
Where can I buy ONSEMI MM3Z12VC?
You can click on the BUY or RFQ button to purchase MM3Z12VC from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MM3Z12VC?
You can download the MM3Z12VC datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MM3Z12VC?
ONSEMI
