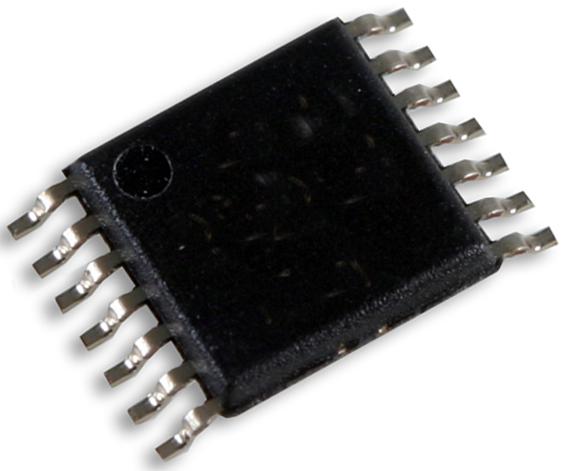

ONSEMI MC74HC14ADTR2G Hex Schmitt Trigger Inverter
The MC74HC14ADTR2G is a high-performance CMOS Hex Schmitt-trigger Inverter with Silicon-Gate technology. It features compatibility with standard CMOS and TTL logic levels, making it suitable for interfacing with various digital systems. The device has a push-pull output capable of driving up to 10 LSTTL loads and exhibits low input current of approximately 1 µA. Its hysteresis characteristic provides high noise immunity, making it ideal for cleaning up slow or noisy input signals. The integrated circuit contains 60 FETs, equivalent to 15 logic gates, and adheres to JEDEC standard No.7A for quality and compatibility. This component is commonly used in industrial applications to ensure signal integrity in noisy environments.
ONSEMI MC74HC14ADTR2G Hex Schmitt Trigger Inverter Specifications:
- Package: SOIC-14 NB or TSSOP-14
- Supply Voltage Range: 2.0 to 6.0 V
- Output Drive Capability: 10 LSTTL loads
- Input Current: approximately 1 µA
- Maximum DC Supply Voltage: 7.0 V
- Maximum Input Voltage: 0 to Vcc V
- Maximum Output Voltage: 0 to Vcc V
- Maximum Power Dissipation: 500 mW per package
- Storage Temperature: -65°C to +150°C
- Operating Temperature: -55°C to +125°C
- Hysteresis Voltage: Vhys minimum 0.20 V, maximum approximately 3.0 V
- Input Threshold Voltages: Vt+ approx 2.0 V to 4.2 V depending on Vcc
- Propagation Delay: 15 to 110 ns depending on Vcc and load
- Input Capacitance: 10 pF
- ESD Protection: Meets JEDEC standards
- RoHS compliant, Pb-Free, Halogen-Free, BFR-Free
Buy the On Semiconductor Series HC14 Schmitt Trigger: MC74HC14ADTR2G
Shop online for the MC74HC14ADTR2G Hex Schmitt-Trigger Inverter. This high-performance CMOS device provides excellent noise immunity and signal cleaning capabilities, ideal for industrial automation, signal conditioning, and noisy environment applications. Featuring low input current, compatibility with CMOS and TTL logic levels, and a push-pull output driving up to 10 LSTTL loads, it ensures reliable operation and signal integrity. Order now to enhance your digital circuits with this robust, RoHS-compliant IC, available for quick delivery and easy procurement online.
Order your On Semiconductor Series HC14 Schmitt Trigger MC74HC14ADTR2G today and give your digital systems the noise immunity and signal integrity they need.
