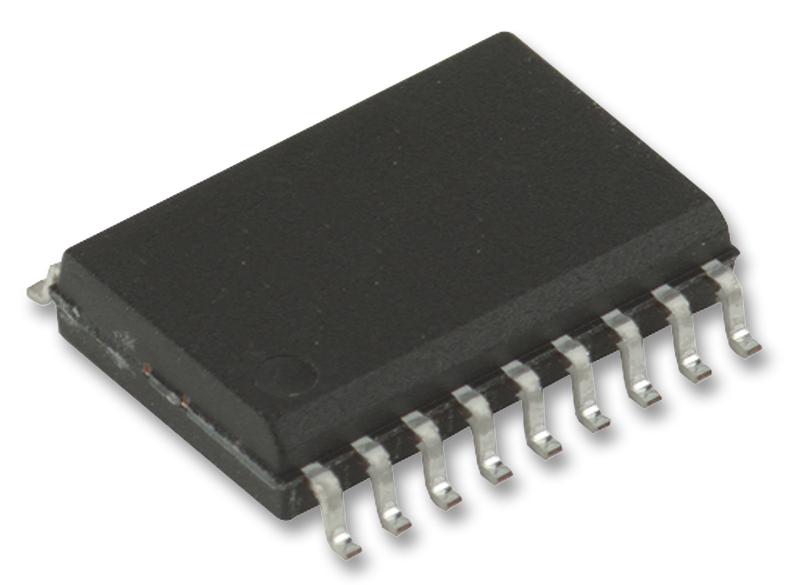

ONSEMI MC74LVXC3245DTG Octal Voltage Transceiver
The MC74LVXC3245 is a dual-supply, octal configurable voltage interface transceiver designed for PCMCIA and real-time configurable I/O applications. It features bidirectional data transfer between 3.0 V and 5.0 V levels, with control inputs compatible with TTL signals. The device supports high current sourcing/sinking, flexible voltage configurations, and float capabilities for PCMCIA sockets. Available in SOIC and TSSOP packages, it ensures low power consumption, making it suitable for low-power notebook and portable device applications. It guarantees reliable voltage translation and meets industry standards for buffer and interface components.
ONSEMI MC74LVXC3245DTG Octal Voltage Transceiver Specifications:
- Supply Voltage Vcc: 3.0 V (Vcca), 3.3 V (Vccp), 5.0 V (Veo)
- Input Voltage OE, TR: 0 V to Vcc
- Output Voltage: 0 V to Vcc, capable of sourcing/sinking up to 24 mA
- Maximum DC Supply Voltage: 7.0 V
- Input/Output Capacitance: 10 pF (IO), 45 pF (Input)
- Power Dissipation Capacitance: 50 pF (A to B), 40 pF (at 3.3 V operation)
- Maximum Operating Temperature: -40°C to +85°C
- Propagation Delay Time (A to B, B to A): 1.0 ns minimum, up to 85 ns maximum
- Package Options: SOIC-24, TSSOP-24
- RoHS Compliant, Pb-Free
- Power Consumption: Less than 1 mW at typical conditions
- Data Pins: A0-A7, B0-B7; Control Pins: OE, TR
- Designed for low power notebook and portable device applications, providing reliable voltage translation and high current drive capacity.
Buy the ON Semiconductor MC74LVXC3245 – Reliable Voltage Interface for Industrial Applications
Enhance your electronic interface capabilities with the MC74LVXC3245 dual-supply octal voltage transceiver. Designed for PCMCIA and low-power portable device applications, it features bidirectional data transfer with TTL-compatible control inputs. Available in SOIC and TSSOP packages, this RoHS-compliant device delivers high current sourcing and sinking, flexible voltage levels, and low power consumption, ensuring reliable voltage translation and efficient operation within industrial, telecommunication, and computing systems. Order online today for dependable performance in your projects.
Order your ON Semiconductor MC74LVXC3245 today and give your projects the dependable quality they deserve with low power, high current bidirectional transceivers.
Frequently Asked Questions
Where can I buy ONSEMI MC74LVXC3245DTG?
You can click on the BUY or RFQ button to purchase MC74LVXC3245DTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC74LVXC3245DTG?
You can download the MC74LVXC3245DTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC74LVXC3245DTG?
ONSEMI
