ONSEMI NCP1075ABP100G High-Voltage Power Switcher
The NCP1075 series is a high-efficiency offline switcher designed for robust power supplies, integrating a 700 V MOSFET and features like soft-start, frequency jittering, short-circuit protection, skip-cycle mode, auto-recovery over-voltage protection, brown-out detection, and frequency foldback. Suitable for power meters, industrial SMPS, and home appliances, it offers excellent light load performance and low standby power consumption. Its integrated circuitry ensures reliable operation across various input voltages, with protections against over-voltage, over-current, and short circuits, making it ideal for demanding power supply applications.
ONSEMI NCP1075ABP100G High-Voltage Power Switcher Specifications:
- Built-in 700 V MOSFET with Rps(on) of 13.5Ω (NCP1075uz), 4.8Ω (NCP1076uz/77uz), and 2.9Ω (NCP1079uz)
- Fixed frequency operation at 65, 100, 130 kHz with jittering for EMI reduction
- Peak current set-point options: 400mA to 1050mA depending on model
- Maximum drain voltage BVpss of 700 V, short-circuit & overload protection with auto-recovery
- Includes brown-out detection, over-voltage protection, frequency foldback, skip-cycle mode, and soft-start of 10 ms
- Thermal resistance junction-to-air from 0.36 to 1.0 °C/W depending on package
- Maximum junction temperature of 150°C, storage range -60°C to +150°C
- ESD Capabilities: 2 kV HBM on pins, 1 kV on drain, 200 V MM, 1 kV CDM

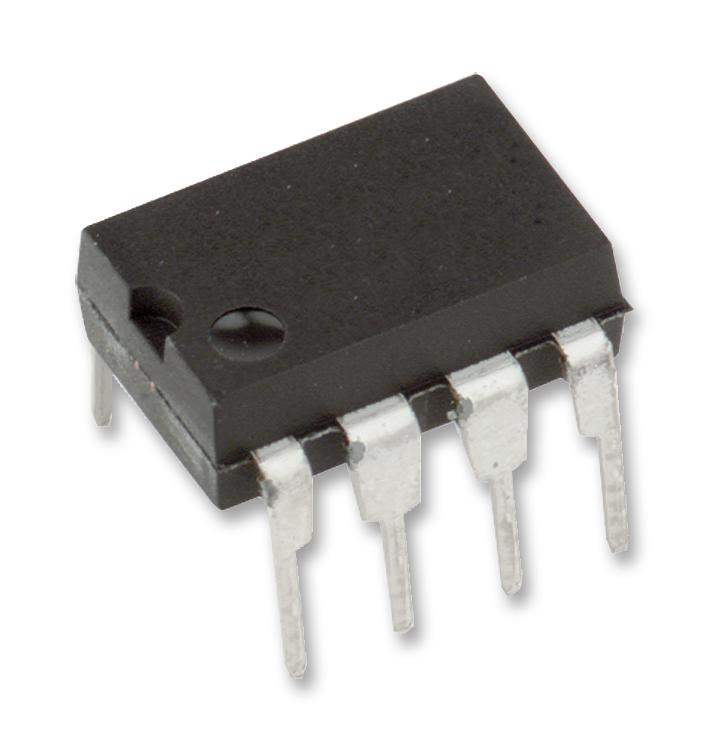

Buy the ON Semiconductor Series NCP1075 Power Switch: NCP1075ABP100G
Purchase the ON Semiconductor NCP1075ABP100G online today for superior power switching performance. Designed for efficiency, durability, and compact power supply solutions, this 700 V MOSFET-based switcher features advanced protections, frequency jittering, soft-start, and skip-cycle operation to optimize light load efficiency. Ideal for industrial, home appliances, and power metering, it ensures reliable and safe operation across a wide input voltage range. Order now to benefit from fast shipping and expert support on our easy-to-use online platform.
Get ON Semiconductor NCP1075ABP100G today—built for precision, rugged reliability, and low standby power in power supply and industrial applications.
Frequently Asked Questions
Where can I buy ONSEMI NCP1075ABP100G?
You can click on the BUY or RFQ button to purchase NCP1075ABP100G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP1075ABP100G?
You can download the NCP1075ABP100G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP1075ABP100G?
ONSEMI
