ONSEMI MC78M09BDTG Positive Voltage Regulator
The MC78M09BDTG is a positive voltage regulator capable of providing a 9V output. It is similar to standard 3-terminal regulators but is designed for applications requiring lower output current, with a maximum of 500mA when properly heat sinks are used. The device incorporates internal circuitry for current limiting, thermal shutdown, and safe-area compensation, ensuring reliable operation under various conditions. It requires no external components, offers high accuracy within ±2%, and is suitable for local power regulation in automotive, industrial, and power management applications.
ONSEMI MC78M09BDTG Positive Voltage Regulator Specifications:
- Output Voltage: 9V
- Maximum Output Current: 500mA with heatsink
- Accuracy: ±2%
- Internal Current Limiting
- Thermal Shutdown
- Safe-Area Compensation
- Input Voltage Range: 6.0V to 24V
- Dropout Voltage: 2.0V
- Operating Temperature Range: -40°C to +125°C
- Package Options: DPAK-3, TO-220
- Pb-Free Devices
- Thermal Resistance, Junction-to-Air (DPAK-3): 70°C/W
- Thermal Resistance, Junction-to-Case (DPAK-3): 50°C/W
- Thermal Resistance, Junction-to-Air (TO-220): 92°C/W
- Thermal Resistance, Junction-to-Case (TO-220): 5.0°C/W
- Certification: AEC-Q100 Qualified (NCV prefix)

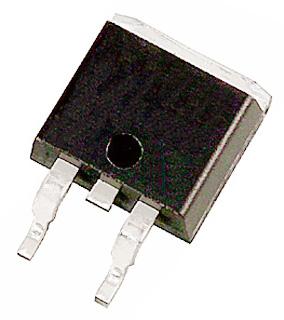

Buy the Buy ON Semiconductor MC78M09BDTG Part Number MC78M09BDTG Online
Order the ON Semiconductor MC78M09BDTG positive voltage regulator online today to ensure stable 9V output for your power management needs. This rugged, high-precision device offers internal current limiting, thermal shutdown, and safe-area compensation, making it ideal for automotive, industrial, and electronics applications. It requires no external components, features a maximum current of 500mA with proper heatsinking, and operates over a temperature range from -40°C to +125°C. Perfect for local regulation with high reliability and efficiency.
Buy ON Semiconductor MC78M09BDTG now and experience unmatched reliability and performance in automotive and industrial power regulation.
Frequently Asked Questions
Where can I buy ONSEMI MC78M09BDTG?
You can click on the BUY or RFQ button to purchase MC78M09BDTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC78M09BDTG?
You can download the MC78M09BDTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC78M09BDTG?
ONSEMI
