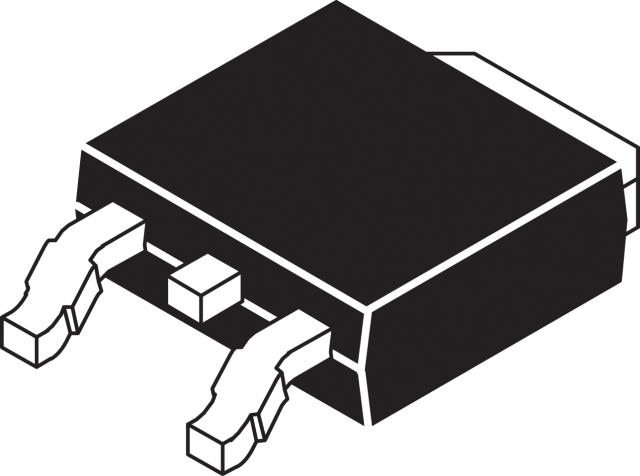

ONSEMI MC78M12BDTG Voltage Regulator
The MC78M12BDTG is a 3-terminal positive voltage regulator designed for local and on-card voltage regulation applications. It is capable of delivering a maximum output current of 500mA with proper heat sinking. The device features internal current limiting, thermal shutdown protection, and safe-area compensation for the internal pass transistor, ensuring reliable operation under various conditions. No external components are required for its operation. It operates within a temperature range of -40°C to 125°C, making it suitable for industrial applications.
ONSEMI MC78M12BDTG Voltage Regulator Specifications:
- Output Voltage: 12V
- Maximum Output Current: 500mA
- Input Voltage Range: 6.0V to 24V (35V max)
- Temperature Range: -40°C to 125°C
- Thermal Resistance, Junction-to-Air: 92°C/W (Dpak) / 70°C/W (TO-220)
- Power Dissipation: Internally Limited
- Internal Current Limiting, Thermal Shutdown, Safe-Area Compensation
- Package Options: DPAK-3, TO-220
- Pb-Free Device, Qualified for Automotive Use (AEC-Q100)
Buy the ON Semiconductor MC78M12BDTG – Reliable Voltage Regulator for Industrial Applications
Enhance your electrical system with the MC78M12BDTG voltage regulator—designed for industrial applications requiring stable voltage output up to 12V and 500mA current. Featuring internal current limiting, thermal shutdown, and safe-area compensation, this device offers reliable performance even under demanding conditions. With no external components needed, it simplifies your design while ensuring robustness across a wide temperature range of -40°C to 125°C. Ideal for local voltage regulation on your circuit boards, it guarantees safety, efficiency, and durability for extended use in industrial environments.
Get ON Semiconductor MC78M12BDTG today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy ONSEMI MC78M12BDTG?
You can click on the BUY or RFQ button to purchase MC78M12BDTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC78M12BDTG?
You can download the MC78M12BDTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC78M12BDTG?
ONSEMI
