ONSEMI MC78M15CTG Positive Voltage Regulator
The MC78M15CTG is a positive voltage regulator designed for local and on-card voltage regulation applications. It provides a maximum output current of 500mA with proper heat sinking. The device features internal current limiting, thermal shutdown protection, and safe-area compensation for the internal pass transistor, ensuring reliable operation under various conditions. It requires no external components and operates over a temperature range from 0°C to 125°C, making it suitable for industrial applications. The regulator is intended for use where regulation precision is not critical, given its current capacity and protection features.
ONSEMI MC78M15CTG Positive Voltage Regulator Specifications:
- Maximum output current: 500 mA
- Output Voltage: 15 V
- Temperature Range: 0°C to 125°C
- Internal current limiting and thermal shutdown
- Safe-area pass transistor compensation
- Operating Voltage: Vi = 17.5 V to 30 Vdc
- Dropout Voltage: 2.0 V
- Line Regulation: 50 mV
- Load Regulation: 25–300 mV
- Output Noise Voltage: 90 µV
- Ripple Rejection: 54–70 dB
- Quiescent Current: 3.2–6.0 mA
- Peak Output Current: 700 mA
- Package: TO-220, DPAK-3
- Storage Temperature: -65°C to +150°C
- Operating Junction Temperature: 0°C to +125°C
- RoHS Compliant, Pb-Free

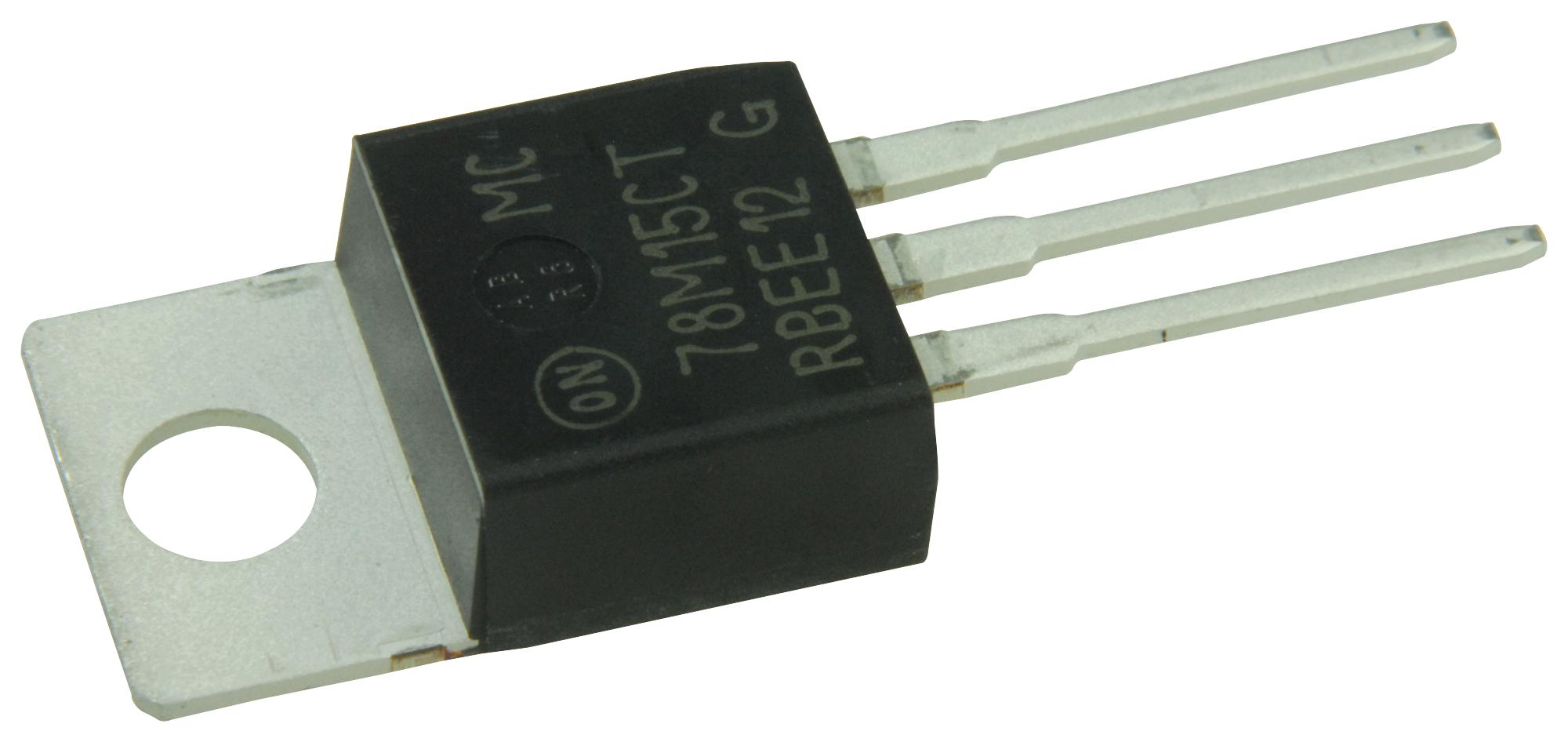

Buy the ON Semiconductor Series NCV78M15 15V Voltage Regulator: MC78M15CTG
Discover the ON Semiconductor MC78M15CTG, a high-quality positive voltage regulator designed for local and on-card applications. It offers 15V output with a maximum current of 500mA, suitable for industrial environments. The device features internal current limiting, thermal shutdown, and safe-area compensation, ensuring robust performance under various conditions. Operating from 0°C to 125°C, it requires no external components, simplifying circuit design. Perfect for reliable power regulation where precision isn’t critical, this Pb-Free, RoHS compliant regulator ensures durability and consistent operation.
Get ON Semiconductor MC78M15CTG today—built for reliable local regulation with internal protections and no external components needed.
