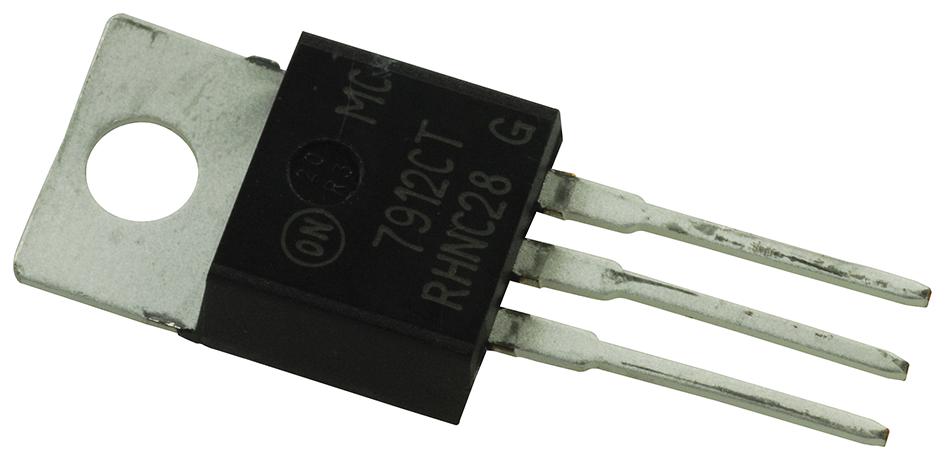

ONSEMI MC7912CTG Negative Voltage Regulator
The MC7912CTG is a fixed negative linear voltage regulator designed as a complement to the MC7800 series. It provides negative output voltages ranging from -5.0V to -24V, with an additional voltage option commonly used in MECL systems. This regulator features internal current limiting, thermal shutdown, and safe-area compensation, making it highly reliable under various operating conditions. With adequate heat sinking, it can deliver output currents exceeding 1.0A. It requires no external components and offers a 2% voltage tolerance. Suitable applications include motor drive and control systems.
ONSEMI MC7912CTG Negative Voltage Regulator Specifications:
- Output Voltage Range: -5.0V to -24V
- Voltage Tolerance: 2%
- Maximum Output Current: >1.0A with heatsinking
- Thermal Shutdown: Yes
- Internal Current Limiting: Yes
- Safe-Area Compensation: Yes
- Package: TO-220 (G-variant, Pb-Free available)
- Storage Temperature Range: -65°C to +150°C
- Junction Temperature Range: -55°C to +125°C
- No external components required
- Suitable for motor drives, control systems, industrial electronics
Buy the ON Semiconductor Series MC7900 Negative Voltage Regulator: MC7912CTG
Discover the reliability of the ON Semiconductor MC7912CTG, a negative voltage regulator providing outputs from -5V to -24V. Designed with internal current limiting, thermal shutdown, and safe-area compensation, it guarantees robust performance in motor drives, control systems, and industrial applications. Its no-external-components design simplifies installation, while high current capacity ensures adaptability for demanding needs. With its Pb-Free package options and excellent temperature tolerance, the MC7912CTG ensures a long-lasting, stable power source for your electronic projects. Order online today and secure a dependable power solution for your electronics.
Order your ON Semiconductor Series MC7900 MC7912CTG today and give your projects the dependable, rugged power regulation they deserve.
Frequently Asked Questions
Where can I buy ONSEMI MC7912CTG?
You can click on the BUY or RFQ button to purchase MC7912CTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC7912CTG?
You can download the MC7912CTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC7912CTG?
ONSEMI
