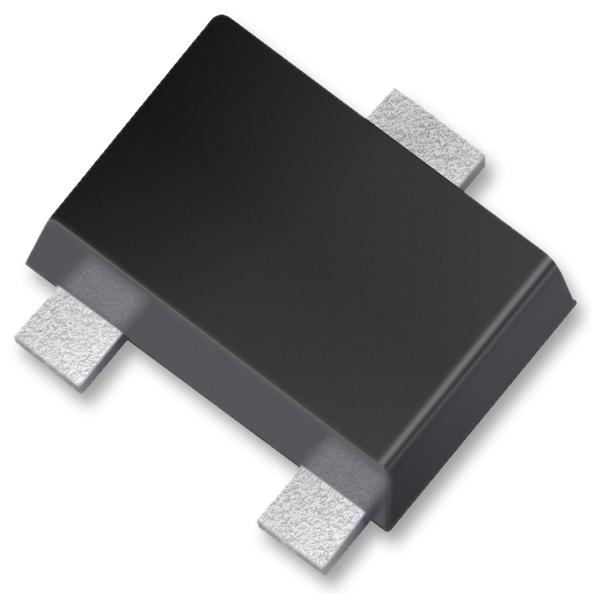

ONSEMI ESD7C50DT5G ESD Protection Diode
The ESD7C50DT5G is a compact, Pb-free ESD protection diode designed for portable and mobile electronics, including cellular phones and digital cameras. Featuring a low capacitance of 6.2 pF, it provides excellent clamping capability, low leakage, and a fast response time under 1 nanosecond. With an IEC61000-4-2 level 4 ESD rating and an operational stand-off voltage of 5 V, it safeguards sensitive components against ESD events up to 16 kV. Its small size (0.047” x 0.047”) and robust mechanical design make it suitable for high-density circuit boards and automotive applications.
ONSEMI ESD7C50DT5G ESD Protection Diode Specifications:
- Capacitance: 6.2 pF
- Clamping Voltage: Max 5.0 V
- Stand-off Voltage: 5 V
- Response Time: < 1 ns
- ESD Rating: Class 3 (> 16 kV) per Human Body Model
- IEC61000-4-2 Level 4 ESD protection
- Peak Pulse Current: 12 A
- Maximum Reverse Leakage Current: 1.0 μA at Vwm
- Device Size: 0.047" x 0.047" (1.20 mm x 1.20 mm)
- Maximum Body Height: 0.020" (0.5 mm)
- Mechanical: Void-free, transfer-molded, UL 94 V-0 epoxy, tin-plated leads
- Maximum Reflow Temperature: 260°C
- Device Meets MSL 1 (reflow and handling)
- Operating Temperature Range: -55°C to +150°C
- Maximum Power Dissipation: 240 mW on FR-5 board
Buy the ON Semiconductor ESD7C50DT5G – Reliable ESD Protection Diode for Industrial Applications
Buy the ESD7C50DT5G ESD protection diode online today for superior defense against static discharge in portable and industrial electronics. This compact, low-capacitance diode features a fast response time under 1 nanosecond, high ESD withstand voltage of over 16 kV, and a small body outline dimensions of 0.047 inches. Its robust mechanical design with UL 94 V-0 epoxy and tin-plated leads ensures reliability and durability. Ideal for circuit protection in mobile devices, automotive applications, and high-density boards, this Pb-free device guarantees safety and performance in demanding environments.
Get ON Semiconductor ESD7C50DT5G today—built for fast response and long-lasting durability in sensitive electronic devices.
