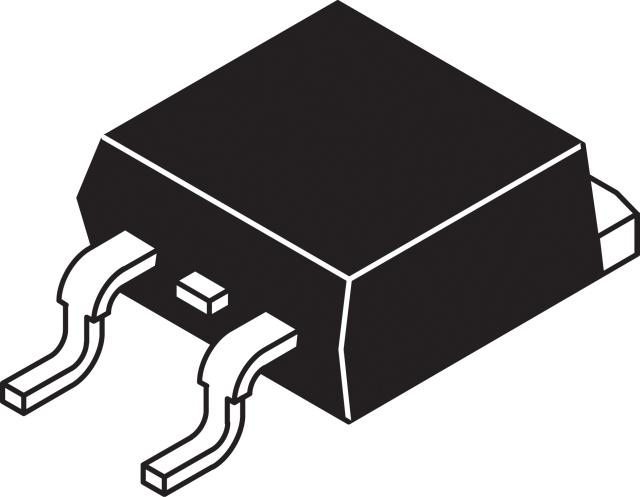

ONSEMI MC7915ACD2TG Negative Voltage Regulator
The MC7915ACD2TG is a negative voltage regulator designed for stable output voltage regulation in power supply applications. It features internal thermal overload protection, short circuit current limiting, and safe-area compensation for rugged performance. Operating in the -15V to -15.6V range with a 2% voltage tolerance, it provides reliable output with low noise and high ripple rejection ideal for integrating into various electronic circuits. Suitable for low and high current applications, it ensures consistent voltage regulation under changing load and temperature conditions. External protection diodes can enhance its robustness in complex systems.
ONSEMI MC7915ACD2TG Negative Voltage Regulator Specifications:
- Output Voltage Range: -15V to -15.6V with 2% voltage tolerance
- Maximum Input Voltage: -30 Vde
- Output Noise Voltage: 90 nV
- Ripple Rejection: 60 dB
- Line Regulation: 14-27 mV
- Load Regulation: 25-68 mV
- Output Current: up to 1.0A
- Dropout Voltage: 13 V
- Temperature Coefficient: -1.0 mV/°C
- Thermal Resistance Junction-to-Ambient: 60-75 °C/W depending on package
- Maximum Junction Temperature: +125°C
- Storage Temperature Range: -65°C to +150°C
- Input Bias Current: max 8.0 mA
- Incorporates internal protection including thermal overload and short circuit protection
Buy the ON Semiconductor Series MC7900 Negative Voltage Regulator: MC7915ACD2TG
Order the ON Semiconductor MC7915ACD2TG negative voltage regulator online today for reliable, stable -15V to -15.6V power supply solutions. This rugged device offers internal thermal overload protection, safe-area compensation, and low noise operation, making it ideal for precision electronic applications. With a maximum output current of 1.0A, it ensures consistent performance even under fluctuating load conditions. Whether for low-power circuits or demanding power supplies, purchasing online guarantees fast delivery, competitive pricing, and genuine products to support your electronic projects efficiently.
Get ON Semiconductor MC7915ACD2TG today—designed for precision voltage regulation with high ripple rejection and rugged thermal protection.
Frequently Asked Questions
Where can I buy ONSEMI MC7915ACD2TG?
You can click on the BUY or RFQ button to purchase MC7915ACD2TG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC7915ACD2TG?
You can download the MC7915ACD2TG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC7915ACD2TG?
ONSEMI
