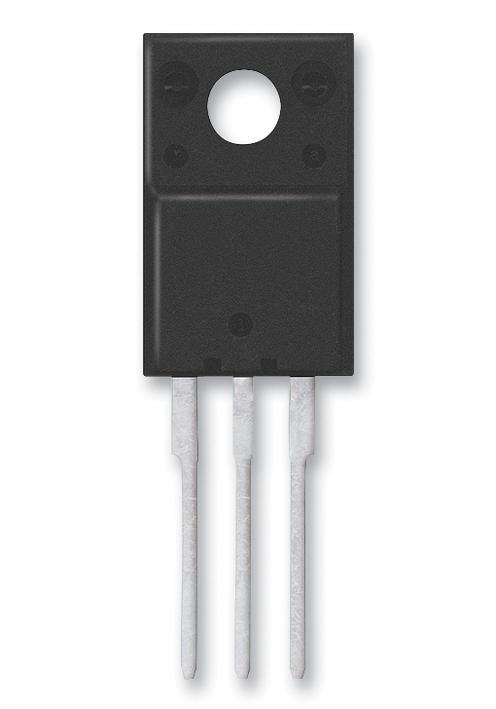

ONSEMI MJF44H11G Power Transistor
The MJF44H11G is a high-performance NPN power transistor designed for use in switching and amplification applications. It features low collector-emitter saturation voltage of 1.0 V at 8.0 A, fast switching capabilities, and comes in a Pb-free TO-220 package suitable for isolated applications. Its maximum collector-emitter voltage is 80 V with a collector current of 10 A continuous, peak 20 A. The device has a total power dissipation of 36 W at 25°C and thermal resistance junction-to-ambient of 62.5°C/W, making it ideal for power regulation, converters, and switching stages.
ONSEMI MJF44H11G Power Transistor Specifications:
- Collector-Emitter Voltage: 80 V
- Emitter-Base Voltage: 5 V
- Collector Current: 10 A continuous, 20 A peak
- Total Power Dissipation: 36 W at 25°C
- Thermal Resistance, Junction-to-Ambient: 62.5 °C/W
- Thermal Resistance, Junction-to-Case: 3.5 °C/W
- Operating Temperature Range: -55°C to 150°C
- Collector-Emitter Saturation Voltage: 1.0 V @ 8.0 A
- Gain Bandwidth Product: 50 MHz
- Switching Delay Time: 300 ns
- Fall Time: 140 ns
- Package: TO-220, Pb-Free Options Available
Buy the ON Semiconductor Series Power Transistor: MJF44H11G
Purchase the ON Semiconductor MJF44H11G power transistor online for high efficiency switching and amplification. Its low saturation voltage, fast switching speed, and robust thermal handling make it ideal for power supply, motor control, and industrial automation. With a maximum collector-emitter voltage of 80 V, continuous current of 10 A, and available Pb-free packaging, this device ensures durability and performance in demanding applications. Order now to enhance your power management systems with this reliable component.
Buy ON Semiconductor MJF44H11G now and experience unmatched reliability and high-current switching performance.
Frequently Asked Questions
Where can I buy ONSEMI MJF44H11G?
You can click on the BUY or RFQ button to purchase MJF44H11G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MJF44H11G?
You can download the MJF44H11G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MJF44H11G?
ONSEMI
