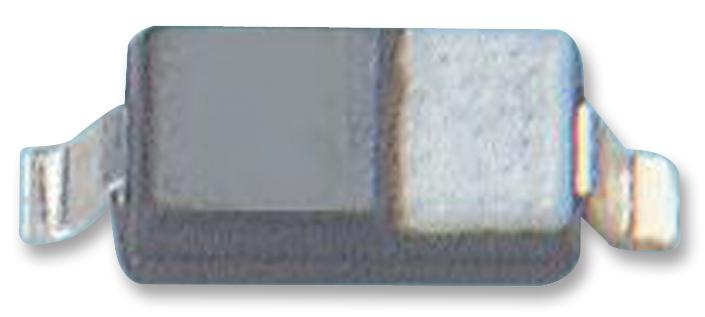

ONSEMI MM3Z3V9T1G Zener Diode
The series of Zener diodes in the Surface Mount SOD-323 package offers a compact, space-efficient solution for voltage regulation and protection in applications like cellular phones, portable devices, and high-density PCBs. These devices provide a steady state power rating of 300 mW with a breakdown voltage range of 2.4 V to 75 V. Featuring corrosion-resistant surfaces, Pb-Free construction, and robust mechanical qualities, they accommodate any mounting position and withstand soldering temperatures up to 260°C. Ideal for automotive, industrial, and consumer electronic applications requiring reliable voltage regulation in confined spaces.
ONSEMI MM3Z3V9T1G Zener Diode Specifications:
- Power Dissipation: 300 mW steady state
- Package: SOD-323 surface mount
- Dimensions: 0.067” x 0.049” (1.7 mm x 1.25 mm), Low Body Height: 0.035” (0.9 mm)
- Breakdown Voltage Range: 2.4 V to 75 V
- Maximum Case Temperature for Soldering: 260°C for 10 Seconds
- Thermal Resistance, Junction-to-Ambient: 416 °C/W
- Maximum Storage and Junction Temperature: -65°C to +150°C
- Polarity: Cathode indicated by band, Mounting position: any
- Material: Void-free, Transfer-Molded Plastic, Corrosion resistant
- Lead Finish: Pb-Sn or Sn only (Pb-Free)
- ESD Rating: Class 3 (> 16 kV), UL Flammability Rating: UL 94 V-0
Buy the On Semiconductor Series SZ Zener Voltage Regulators: MM3Z3V9T1G
Purchase the ON Semiconductor MM3Z3V9T1G Zener diode now to ensure reliable voltage regulation in confined spaces. Designed for portability and durability, this surface mount device supports high-density PCBs and portable electronics. Its compact size and corrosion-resistant coating make it suitable for cellular phones, handhelds, and automotive applications. With a maximum power dissipation of 300 mW and breakdown voltages from 2.4 V to 75 V, this Pb-Free diode guarantees quality, safety, and performance in critical electronic systems. Buy online today and enjoy fast delivery and authentic parts for your project.
Get ON Semiconductor MM3Z3V9T1G today—built for reliable voltage regulation and space-saving applications in compact electronic devices.
Frequently Asked Questions
Where can I buy ONSEMI MM3Z3V9T1G?
You can click on the BUY or RFQ button to purchase MM3Z3V9T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MM3Z3V9T1G?
You can download the MM3Z3V9T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MM3Z3V9T1G?
ONSEMI
