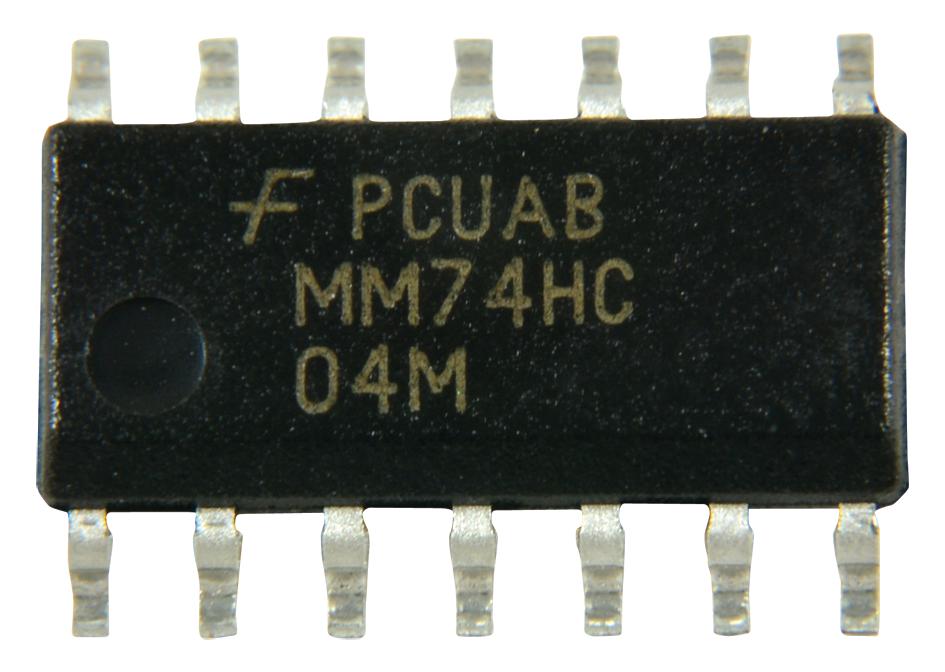

ONSEMI MM74HC04MX Hex Inverter
The MM74HC04MX is a hex inverter chip built with advanced silicon-gate CMOS technology, offering high-speed operation comparable to LS-TTL logic gates while maintaining low power consumption typical of standard CMOS circuits. It functions as a triple buffered inverter with high noise immunity and can drive up to ten LS-TTL loads. The device is pin and functionally compatible with the 74LS logic family and incorporates internal diode clamps to protect against static discharge damage. Key features include an 8 ns propagation delay, a fan-out of 10 LS-TTL loads, a maximum low-level input current of 1 µA, and a maximum quiescent power consumption of 10 µW. It is commonly used in industrial applications.
ONSEMI MM74HC04MX Hex Inverter Specifications:
- Typical propagation delay: 8ns
- Fan out of 10 LS-TTL loads
- Quiescent power consumption: 10µW maximum at room temperature
- Low input current: 1µA maximum
- Supply Voltage: -0.5 to +7.0V
- DC Input Voltage: 1.5V to Vcc
- DC Output Voltage: -0.5V to Vcc+0.5V
- Power Dissipation: 600mW (Plastic package: 500mW)
- Operating Temperature Range: -40°C to +85°C
- Container options include SOIC, SOP, TSSOP, PDIP packages
- Propagation delay: 8ns typical, 15ns max
- Input voltage levels: High ≥ 2.0V, Low ≤ 0.5V
- Input rise/fall times: 1000ns at Vcc=2.0V, 500ns at Vcc=4.5V, 400ns at Vcc=6.0V
- Lead temperature (soldering, 10 sec): 260°C
- Capacitance: Input 10pF, Power 20pF
Buy the ON Semiconductor MM74HC04U – Reliable Hex Inverter for Industrial Applications
Discover the high-performance ON Semiconductor MM74HC04MX hex inverter, ideal for industrial electronics. Designed with advanced CMOS technology, it offers fast operation with an 8 nanosecond delay, driving up to ten LS-TTL loads. Its low power consumption of just 10 micro-Watts ensures efficiency in complex systems. The device features high noise immunity and static discharge protection, making it suitable for demanding industrial environments. Available in various packages like SOIC, SOP, TSSOP, and PDIP, it guarantees reliability and easy integration into your designs. Buy online now for precision and durability.
Get ON Semiconductor MM74HC04MX today—built for high-speed performance and low power consumption in industrial circuits.
