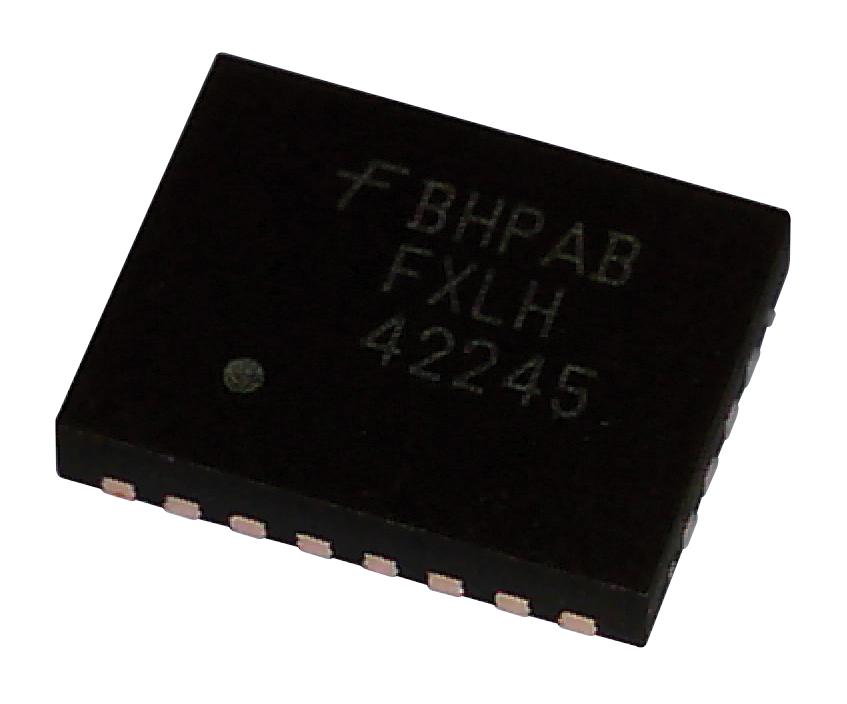

ONSEMI FXLH42245MPX 8-bit bidirectional voltage translator
The FXLH42245 is a low-voltage, dual-supply, 8-bit signal translator for bi-directional voltage translation between levels from 1.1V to 3.6V. It features configurable voltage tracking on both ports, power-up in a 3-state condition, and bus hold on data inputs eliminating external resistors. The device provides power-off protection, includes 26W series resistors for line noise reduction, and is packaged in a 24-pin MLP with high ESD protection exceeding 4kV HBM. Ideal for translating signals in mixed-voltage systems, it ensures reliable operation over a wide temperature range.
ONSEMI FXLH42245MPX 8-bit bidirectional voltage translator Specifications:
- Voltage Compatibility: 1.1V to 3.6V ports
- Package: 24-Pin MLP (JEDEC MO-220)
- ESD Protection: >4kV Human Body Model, 8kV I/O to GND
- Input/Output Voltage Range: 0V to Vcc levels
- Supports Power-Up in 3-State until Vcc is active
- Power-off protection when Vcc is removed
- Includes 26W series resistors to minimize line noise
- Control Inputs: T/R and OE referenced to Veca
- Temperature Range: -40°C to +85°C
- Controlled by configurable T/R and OE inputs for data direction
- Low static power consumption with high noise immunity
- Designed for reliable operation in industrial, communication, and mixed-voltage systems
Buy the ON Semiconductor FXLH42245 U–2013 Reliable Signal Translator for Industrial Applications
Purchase the ON Semiconductor FXLH42245 now online for high-reliability signal translation between different voltage levels. Its configurable input/output levels from 1.1V to 3.6V ensure compatibility with various systems. The device features power-up in a safe 3-state configuration, bus hold on data inputs to eliminate external resistors, and robust ESD protection exceeding 4kV. Its compact 24-pin MLP package allows easy integration into industrial and communication systems, offering dependable operation over a wide temperature range with minimal noise interference.
Order your ON Semiconductor FXLH42245 in 24-pin MLP today and ensure seamless bi-directional signal translation with excellent noise performance and power-off safety.
Frequently Asked Questions
Where can I buy ONSEMI FXLH42245MPX?
You can click on the BUY or RFQ button to purchase FXLH42245MPX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FXLH42245MPX?
You can download the FXLH42245MPX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FXLH42245MPX?
ONSEMI
