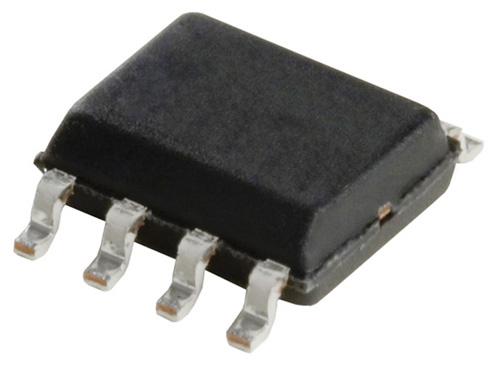

ONSEMI MOC207M Optocoupler
The MOC207-M is a single-channel optocoupler featuring a phototransistor output. It consists of a gallium arsenide infrared emitting diode optically coupled to a monolithic silicon phototransistor detector. Designed for high-density applications, it eliminates the need for through-the-board mounting. The device offers closely matched current transfer ratios, a guaranteed minimum collector-emitter breakdown voltage BVCEO of 70V, and requires low LED input current for easier logic interfacing. It has a lead spacing of 0.050 inches, making it suitable for consumer electronics, motor control, and industrial automation uses.
ONSEMI MOC207M Optocoupler Specifications:
- Package Style: Surface-mount SOIC-8
- Lead Spacing: 0.050 inches
- Isolation Voltage: 2500 VACrms for 1 minute
- Insulation Voltage: 565 Vpeak (working)
- Collector-Emitter Breakdown Voltage: 30 V
- Collector-Base Breakdown Voltage: 70-120 V
- Input Forward Voltage: 1.07-1.8 V
- Input Current (Forward): 10-60 mA
- Collector Current (Continuous): 150 mA
- Power Dissipation (Detector): 150 mW
- Temperature Range: -40°C to +100°C
- Storage Temperature: -40°C to +125°C
- Isolation Resistance: >10^14 ohms at 500 VDC
- Max Operating Temperature: 100°C
- Reflow Soldering Profile: Max peak temperature 260°C, ramp rate 3°C/sec
Buy the ON Semiconductor MOC207M – Reliable Optocoupler for Industrial Applications
Purchase the ON Semiconductor MOC207M optocoupler online now to benefit from seamless integration into industrial and electronic control systems. This high-density surface-mount device provides excellent electrical isolation with a 2500 VACrms test voltage, ensuring safety and reliability. With a lead spacing of 0.050 inches and a collector-emitter breakdown voltage of 30 V, it is ideal for feedback circuits, switching, and coupling applications. Order today and upgrade your automation projects with trusted semiconductor technology.
Order your ON Semiconductor MOC207M high-performance optocoupler today and enhance your industrial control and electronic systems with dependable isolation.
