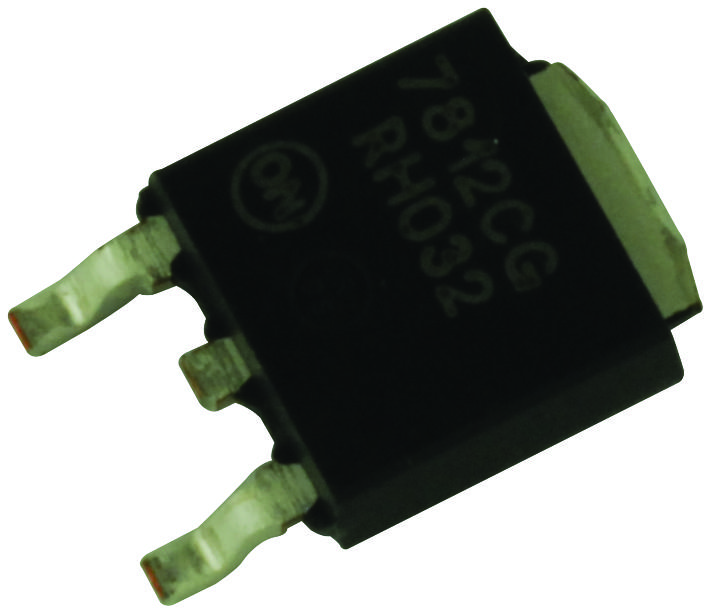

ONSEMI MC7812CDTG Positive Voltage Regulator
The MC7812CDTG is a monolithic positive voltage regulator IC designed for use in a wide range of applications, including local and on-card regulation. It features internal current limiting, thermal shutdown, and safe-area compensation to ensure reliable operation. Capable of delivering over 1A of output current with proper heat sinking, this fixed-voltage regulator offers output voltages with a tolerance of 1.5%, 2%, or 4%, and operates within a temperature range of 0 to 125°C. Its design does not require external components for standard operation, making it suitable for industrial applications. The device includes internal thermal overload protection and short-circuit current limiting for added safety.
ONSEMI MC7812CDTG Positive Voltage Regulator Specifications:
- Output Voltage: 12V with tolerance of 1.5%, 2%, or 4%
- Maximum output current: exceeds 1A with heatsinking
- Operating Temperature Range: 0°C to 125°C
- Case Type: D2PAK-3
- Internal Current Limiting and Thermal Overload Protection
- Safe-Area Compensation for reliable operation
- No external components required for typical use
- Input Voltage Range: 14V to 33V
- Short Circuit Current Limiting: Yes
- Power Dissipation: internally limited to prevent overheating
Buy the Buy ON Semiconductor MC7812CDTG Part Number 7812-12V Online
Purchase the ON Semiconductor MC7812CDTG online today for efficient 12V fixed regulation in industrial and control equipment. This regulator features internal current limiting, thermal shutdown, and safe-area compensation, ensuring reliable operation in demanding environments. Capable of delivering over 1A with appropriate heat sinking, it requires no external support components, simplifying your design. Its robust protection features make it suitable for various applications, offering consistent voltage output with tight tolerances. Trust in the quality and safety of this high-performance voltage regulator for your critical projects.
Get ON Semiconductor MC7812CDTG today—built for reliable 12V regulation with overcurrent and thermal protection for industrial and control circuits.
Frequently Asked Questions
Where can I buy ONSEMI MC7812CDTG?
You can click on the BUY or RFQ button to purchase MC7812CDTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC7812CDTG?
You can download the MC7812CDTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC7812CDTG?
ONSEMI
