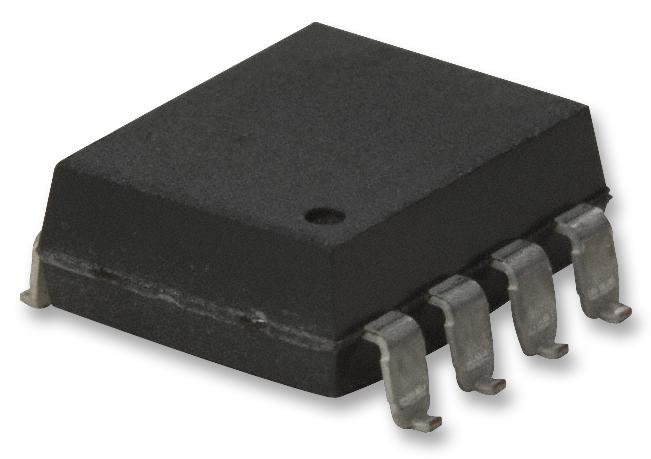

ONSEMI MOC207R2M Optocoupler
The MOC207R2M is a high-quality 8-pin SOIC optocoupler featuring a gallium arsenide infrared LED coupled to a silicon phototransistor. Designed for high-density applications, it provides reliable electrical isolation with safety ratings including UL1577, 2,500 VAC for 1 minute, and IEC 60747-5-5, 565 V peak working insulation voltage. It offers closely matched current transfer ratios, low LED input current, and surface-mount convenience. Typical applications include feedback control, signal isolation, and coupling systems of different potentials, ensuring safe and efficient operation in industrial and electronic systems.
ONSEMI MOC207R2M Optocoupler Specifications:
- Package: SOIC-8 Surface Mount
- Number of Pins: 8
- Input LED Forward Voltage: 1.07 to 1.8 V at specified currents
- Maximum Input Current: 60 mA continuous, 1.0 A peak
- Collector-Emitter Voltage: 30 V
- Collector-Base Breakdown Voltage: 70 to 120 V
- Power Dissipation: 150 mW for detector, 90 mW for LED
- Isolation Voltage: 2,500 VAC for 1 minute
- Insulation Resistance: >10^10 Ω at 500 VDC
- Temperature Range: -40°C to +100°C (operation), -40°C to +125°C (storage)
- Safety: UL1577, IEC 60747-5-5 compliant
- External creepage and clearance: 24 mm
- Maximum junction temperature: 125°C
- Reflow solder profile: peak temperature 260°C
Buy the Buy ON Semiconductor MOC207R2M Part Number MOC207R2M Online
Purchase the ON Semiconductor MOC207R2M optocoupler online for dependable electrical isolation, safety-certified, surface-mount design, and versatile applications in industrial control and signal coupling. Ensure high performance with UL and IEC safety ratings, suitable for feedback, switching, and detection circuits. Easy to install with surface-mount package, offering efficient insulation, robust operation over temperature ranges, and compliance with international safety standards. Perfect for high-density and safety-critical electronic systems, delivering reliable performance and quick procurement.
Order your ON Semiconductor MOC207R2M optocoupler today and enhance your electrical isolation with proven reliability and safety in high-density circuits.
Frequently Asked Questions
Where can I buy ONSEMI MOC207R2M?
You can click on the BUY or RFQ button to purchase MOC207R2M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOC207R2M?
You can download the MOC207R2M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOC207R2M?
ONSEMI
