ONSEMI FQD12N20LTM Power MOSFET
This N-Channel enhancement mode power MOSFET offers a maximum drain-source voltage of 200 V and a drain current of 9.0 A. Built using Fairchild's proprietary planar and DMOS technology, it features low on-resistance (280 mΩ @ Vgs=10V), low gate charge (16 nC), and excellent switching performance. Suitable for switched-mode power supplies, PFC, and electronic lamp ballasts, it is 100% avalanche tested, ensuring high avalanche energy strength and reliability in demanding power applications.
ONSEMI FQD12N20LTM Power MOSFET Specifications:
- Vds Drain-Source Voltage: 200 V
- Id Drain Current - Continuous at 25°C: 9.0 A
- Id Drain Current - Continuous at 100°C: 57 A
- Pulsed Drain Current: 36 A
- Vgs Gate-Source Voltage: +20 V
- Single Pulsed Avalanche Energy: 210 mJ
- Repetitive Avalanche Energy: 55 mJ
- Power Dissipation at 25°C: 2.5 W
- Operating and Storage Temperature Range: -55°C to +150°C
- Thermal Resistance Junction to Case: 2.27°C/W
- Thermal Resistance Junction to Ambient: 50°C/W
- Package: D-PAK
- Package Dimensions: Length 11.25 mm, Width 6.50 mm, Height 2.85 mm

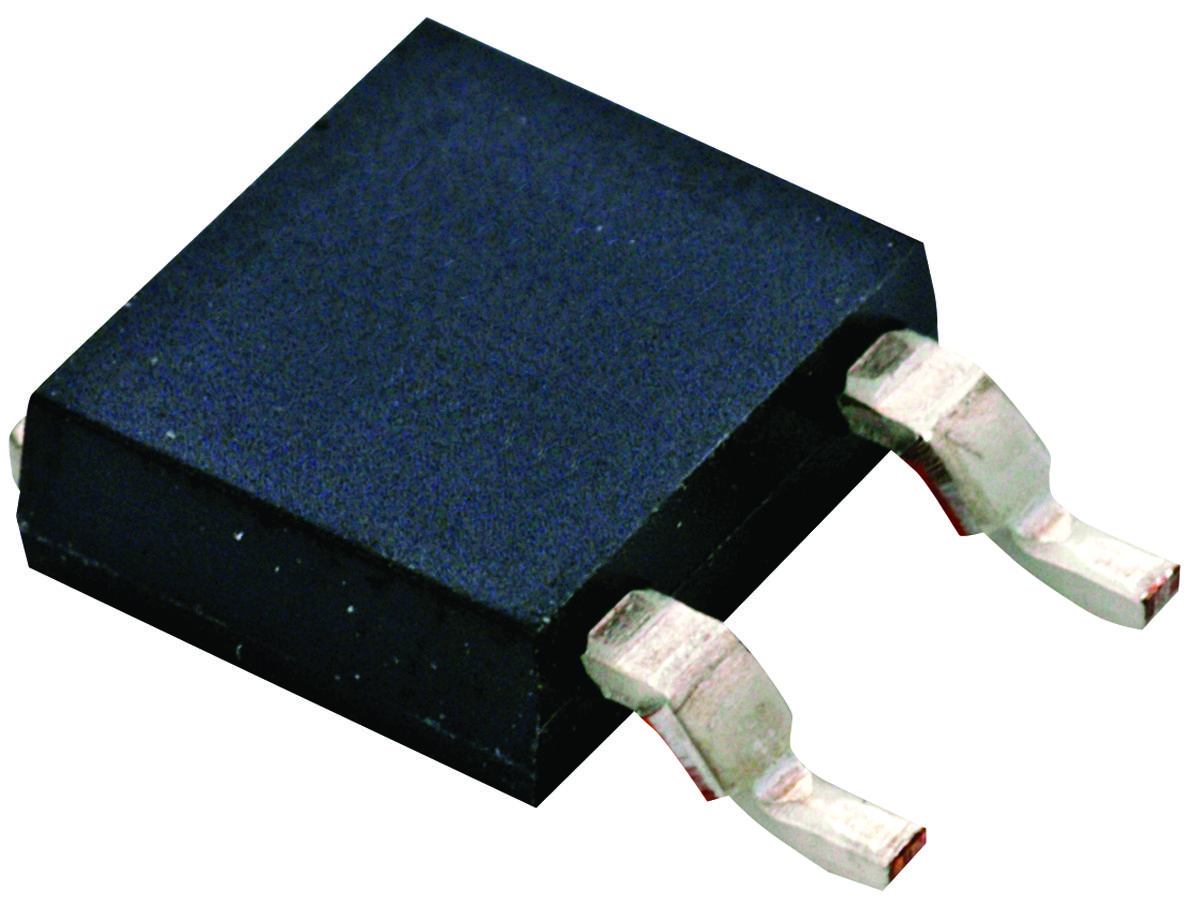

Buy the Buy Fairchild FQD12N20L Part Number FQD12N20LTM Online
Purchase the Fairchild FQD12N20L power MOSFET online for reliable high-voltage switching with low on-resistance and fast switching capabilities. Perfect for power supplies, active PFC circuits, and electronic ballasts, this device provides excellent avalanche energy handling and thermal performance. Its robust construction and avalanche-tested design ensure durability and efficiency in demanding applications, making it an ideal choice for engineers and technicians seeking quality power components. Buy now to ensure optimal performance and long-lasting operation in your power management systems.
Get Fairchild FQD12N20L today—built for precision, low on-resistance, and reliable power switching in demanding electronic applications.
Frequently Asked Questions
Where can I buy ONSEMI FQD12N20LTM?
You can click on the BUY or RFQ button to purchase FQD12N20LTM from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FQD12N20LTM?
You can download the FQD12N20LTM datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FQD12N20LTM?
ONSEMI
