ONSEMI MOC3052SR2M Triac Driver
The MOC3052SR2M is a 6-pin DIP random-phase triac driver optocoupler capable of blocking up to 600 volts peak. It includes an infrared emitting diode coupled with a silicon bilateral AC switch for isolating low-voltage logic from high-voltage AC lines, enabling phase control of high-current triacs or thyristors. Designed for applications like solenoid control, lamp ballasts, static switches, and motor controls, it features enhanced static dv/dt stability, UL1577 safety approval, and DIN IEC60747-5-5 compliance, ensuring reliable and safe operation in industrial environments.
ONSEMI MOC3052SR2M Triac Driver Specifications:
- Peak Blocking Voltage: 600 V
- Maximum Working Insulation Voltage: 850 Vpeak
- Input Forward Voltage: 1.18 to 1.50 V at 10mA
- Input Reverse Leakage Current: 0.05 to 100 pA at VR=3V
- Output Terminal Voltage: 1.7 to 2.5 V at 100mA peak
- Isolation Resistance: > 10^9 Ω at 500V
- External Creepage and Clearance: 27 mm, 210 mm respectively
- Storage Temperature: -40°C to +150°C
- Operating Temperature: -40°C to +85°C
- Total Device Power Dissipation: 330 mW at 25°C
- Junction Temperature Range: -40°C to +100°C
- Lead Solder Temperature: 260°C for 10 seconds

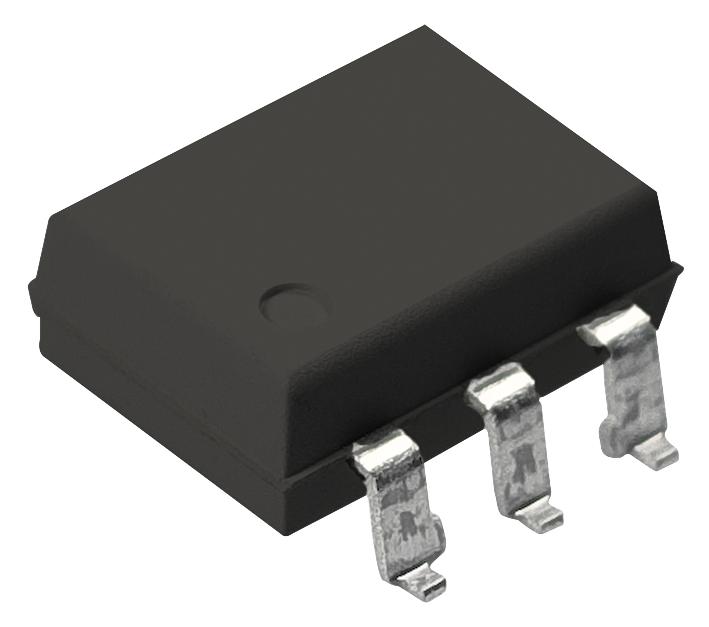

Buy the Buy ON Semiconductor MOC3052SR2M Part Number 600V High Voltage Triac Driver Online
Order the ON Semiconductor MOC3052SR2M online now to ensure your industrial projects benefit from a high-quality 600V isolation optocoupler. This device features enhanced dv/dt stability, UL safety approval, and internal insulation resistance, making it ideal for controlling high-current triacs and thyristors in motor controls, lamp ballasts, and static switches. Its robust design guarantees reliable performance under diverse industrial conditions. Enjoy fast shipping, competitive pricing, and expert support to accelerate your project development with this trusted component.
Get ON Semiconductor MOC3052SR2M today—built for precision, high voltage handling, and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy ONSEMI MOC3052SR2M?
You can click on the BUY or RFQ button to purchase MOC3052SR2M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOC3052SR2M?
You can download the MOC3052SR2M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOC3052SR2M?
ONSEMI
