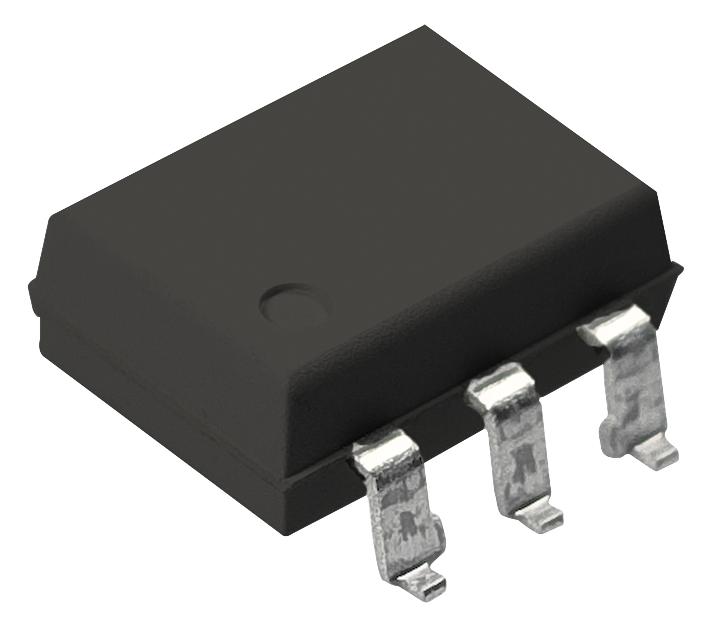

ONSEMI MOC3062SR2VM Triac Driver Optocoupler
The MOC3062SR2VM is a zero-cross triac driver optocoupler designed for simplified AC power switching and control applications. It features a 600 V peak blocking voltage, zero voltage crossing output for minimized electromagnetic interference, and UL1577 and IEC60747-5-5 safety approvals. Ideal for solid-state relays, industrial controls, motor starters, and lighting control systems, it provides reliable performance in environments requiring safe electrical insulation and high-speed switching. Its compact 6-pin DIP package and DIN EN/IEC60747-5-5 compliance make it suitable for space-constrained applications needing durable and precise AC load switching.
ONSEMI MOC3062SR2VM Triac Driver Optocoupler Specifications:
- Peak Blocking Voltage: 600 V peak
- Isolation Voltage: 4170 VAC for 1 minute
- Input Forward Voltage: 1.3 V at 30mA
- Maximum Forward Current: 60 mA
- Output Terminal Voltage: 600 VV (off-state)
- Peak Off-State Surge Current: 1 A
- Isolation Resistance: > 10^9 Ohms at 500 V
- External Creepage and Clearance: 27 mm
- Pollution Degree: 2
- Climatic Classification: 40/85/21
- Storage Temperature Range: -40°C to +150°C
- Operating Temperature Range: -40°C to +85°C
- Junction Temperature: -40°C to +100°C
- PDIP 6-Pin Package, DIN EN/IEC60747-5-5 compliant
Buy the ON Semiconductor Series MOC Series MOC3062SR2VM: Zero-Cross Triac Driver Optocoupler
Purchase the ON Semiconductor MOC3062SR2VM online today and benefit from a reliable zero-cross triac driver designed for safe and efficient AC power switching. Its 600 V peak voltage rating ensures excellent performance in industrial control applications, while UL and IEC certifications guarantee compliance with safety standards. Its compact DIP package and high isolation resistance make it ideal for space-constrained systems requiring durable and precise operation. Enhance your automation and control system with this high-quality, easy-to-integrate optocoupler available for quick online ordering.
Get ON Semiconductor MOC3062SR2VM today—built for safe AC control and high-speed switching in industrial environments.
Frequently Asked Questions
Where can I buy ONSEMI MOC3062SR2VM?
You can click on the BUY or RFQ button to purchase MOC3062SR2VM from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOC3062SR2VM?
You can download the MOC3062SR2VM datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOC3062SR2VM?
ONSEMI
