ONSEMI NCD57090ADWR2G High Current Isolated Gate Driver
The Isolated High Current IGBT/MOSFET Gate Driver is designed for high power applications requiring reliable switching with galvanic isolation. It supports wide input voltage range from 3.3 V to 20 V, offering high peak output current of +6.5 A/-6.5 A. Features include active Miller clamp protection, tight UVLO thresholds, and options for separate high and low outputs. Suitable for motor control, UPS, automotive, industrial power supplies, and solar inverters, it ensures system efficiency and durability with high transient and electromagnetic immunity, conforming to automotive safety standards and RoHS compliance.
ONSEMI NCD57090ADWR2G High Current Isolated Gate Driver Specifications:
- Peak Output Current: +6.5 A/-6.5 A
- Isolation Voltage: 5 kVrms
- Input Voltage Range: 3.3 V to 20 V
- Package: SOIC-8 Wide Body
- Gate Clamp Voltage: ~2 V
- Propagation Delay: 40-90 ns (varies with voltage)
- Rise/Fall Time: approx. 13 ns
- UVLO Thresholds: adjustable for supply voltage reliability
- Operating Temperature Range: -40°C to +125°C
- Final device complies with RoHS, halogen-free, BFR-free, and AEC-Q100 standards
- Supports bipolar and unipolar power supply options
- Maximum Junction Temperature: 150°C
- Short Circuit Clamping Time: 10 μs
- Thermal Resistance: 156 °C/W (one layer) and 85 °C/W (four layer)

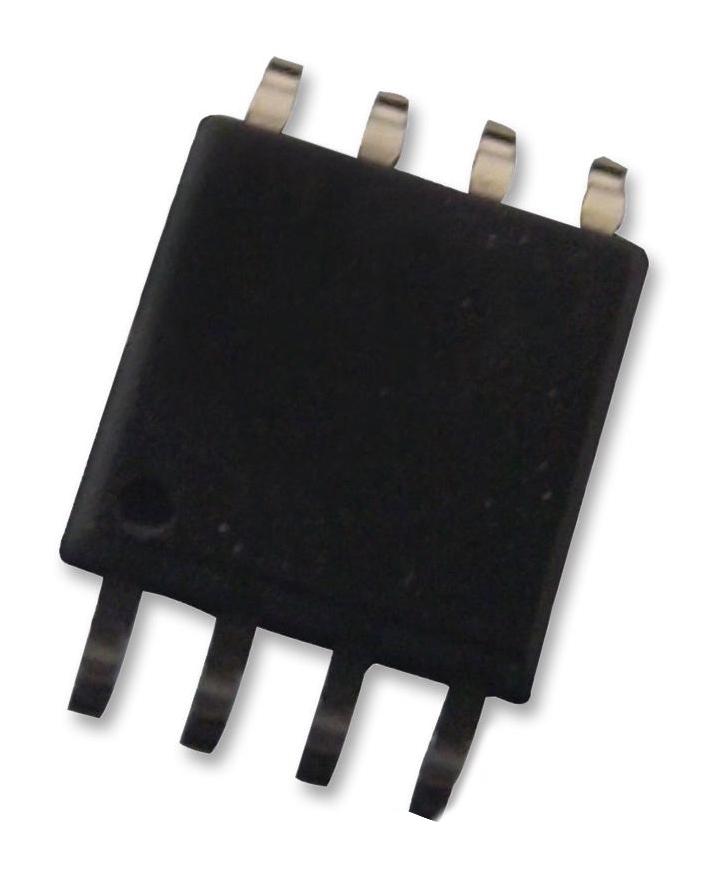

Buy the Buy ON Semiconductor Isolated High Current Gate Driver Part Number NCD57090ADWR2G Online
Purchase the robust high-current isolated gate driver from ON Semiconductor today. Featuring galvanic isolation of 5 kVrms, support for wide input voltages from 3.3 V to 20 V, and high peak output current of ±6.5 A, this driver ensures reliable switching in high power applications. Its advanced features like active Miller clamp protection, tight UVLO thresholds, and compatibility with bipolar and unipolar power supplies make it ideal for motor control, UPS, automotive systems, and solar inverters. Order now for system efficiency and enhanced durability.
Get ON Semiconductor high-current isolated gate driver NCD57090ADWR2G today—designed for high power efficiency, reliability, and automotive-grade performance.
Frequently Asked Questions
Where can I buy ONSEMI NCD57090ADWR2G?
You can click on the BUY or RFQ button to purchase NCD57090ADWR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCD57090ADWR2G?
You can download the NCD57090ADWR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCD57090ADWR2G?
ONSEMI
