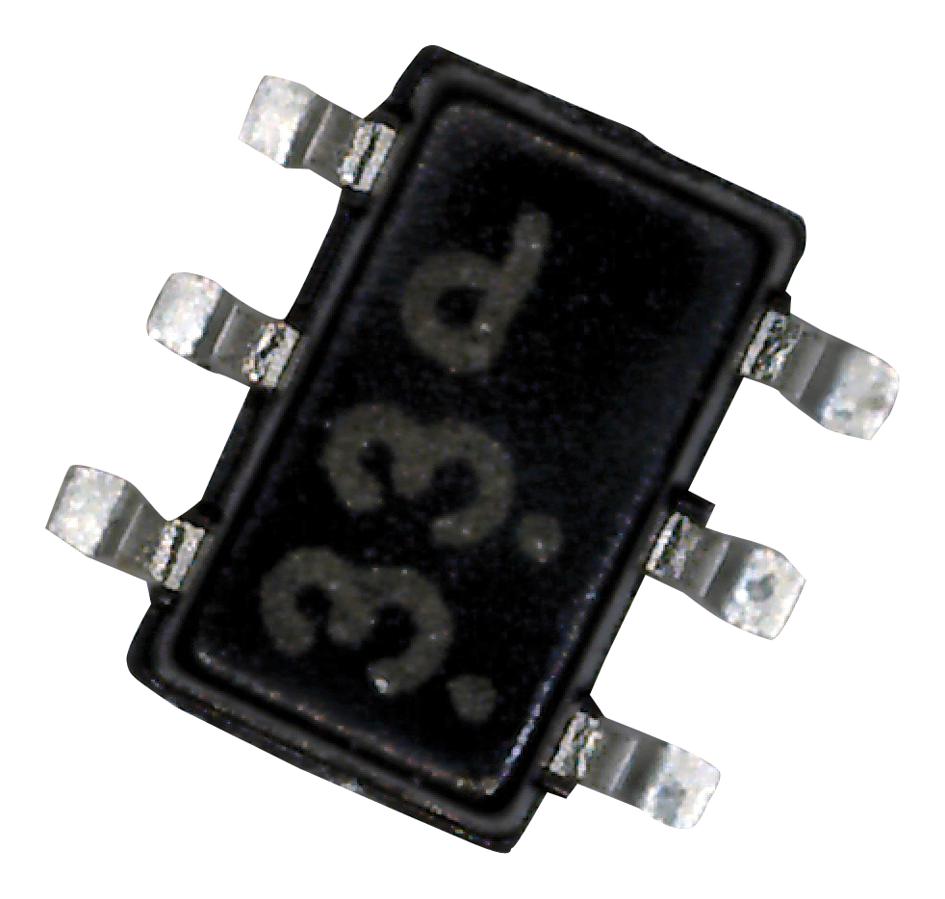

ONSEMI MUN5333DW1T1G Bias Resistor Transistor
The MUN5333DW1 series are monolithic bias resistor transistors combining NPN and PNP types with integrated bias networks, reducing system cost and board space. Designed for automatic and industrial applications, they operate with collector-base and collector-emitter voltages up to 50V and can handle 100mA current. These Pb-Free, RoHS compliant devices feature high thermal dissipation, low thermal resistance, and are qualified under AEC-Q101 standards. Ideal for simplifying circuit design, they support various packages including SOT-363, SOT-563, and SOT-963, providing reliable switching and control functions in compact layouts.
ONSEMI MUN5333DW1T1G Bias Resistor Transistor Specifications:
- Collector-Base Voltage: 50 V
- Collector-Emitter Voltage: 50 V
- Collector Current: 100 mA
- Input Forward Voltage: 30 V
- Input Reverse Voltage: 5 V
- Total Device Dissipation (SOT-563): 385 mW at 25°C
- Total Device Dissipation (SOT-363): 256 mW at 25°C
- Thermal Resistance (Junction to Ambient, SOT-563): 250 °C/W
- Thermal Resistance (Junction to Ambient, SOT-363): 490 °C/W
- Storage Temperature Range: -55°C to +150°C
- Package Options: SOT-363, SOT-563, SOT-963
- RoHS, Pb-Free, Halogen-Free/ BFR-Free, AEC-Q101 Qualified, PPAP Capable
Buy the ON Semiconductor Series Bias Resistor Transistor: MUN5333DW1
Upgrade your electronic designs with the high-performance bias resistor transistors from ON Semiconductor. The MUN5333DW1 series combines NPN and PNP transistors with integrated bias networks, simplifying circuit layout and reducing component count. These devices are AEC-Q101 qualified and RoHS compliant, ideal for automotive, industrial, and automation applications. Their compact packages support space-saving designs, while their high thermal dissipation ensures dependable operation. Purchase online now to benefit from fast delivery and reliable quality, enhancing your manufacturing efficiency and product performance.
Order your ON Semiconductor Series MUN5333DW1 bias resistor transistor today and enhance your circuit's reliability with compact, integrated solutions.
Frequently Asked Questions
Where can I buy ONSEMI MUN5333DW1T1G?
You can click on the BUY or RFQ button to purchase MUN5333DW1T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MUN5333DW1T1G?
You can download the MUN5333DW1T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MUN5333DW1T1G?
ONSEMI
