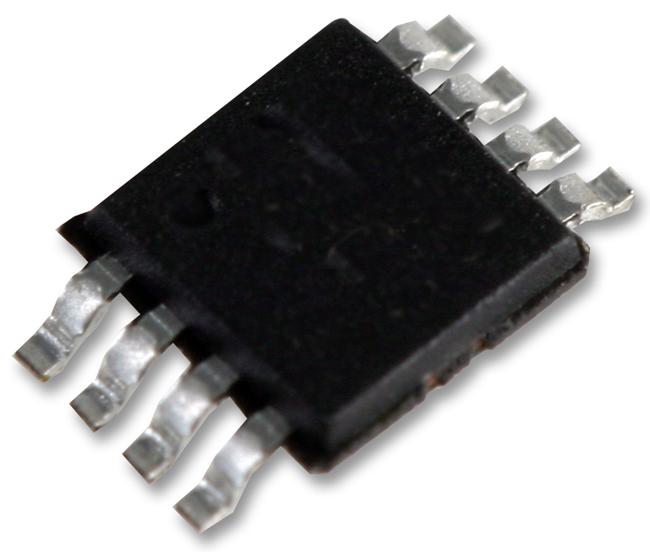

ONSEMI N24C02UDTG CMOS Serial EEPROM
The N24C02/04/08/16 CMOS Serial EEPROM devices offer 2-Kb, 4-Kb, 8-Kb, and 16-Kb capacities, organized into pages of 16 bytes each. Supporting standard, fast, and fast-plus I2C protocols, these devices operate on a voltage range from 1.6V to 5.5V, ensuring low power consumption and high reliability with over 1,000,000 write cycles and a 100-year data retention. Features include hardware write protection, noise suppression on I2C inputs, and compliance with ROHS standards, making them ideal for industrial and automotive applications.
ONSEMI N24C02UDTG CMOS Serial EEPROM Specifications:
- Capacities: 2-Kb, 4-Kb, 8-Kb, 16-Kb
- Organization: 16/32/64/128 pages of 16 bytes
- Operating Voltage: 1.6V to 5.5V
- Write Cycle Endurance: Over 1,000,000 cycles
- Data Retention: 100 Years
- Supporting Protocols: Standard (100 kHz), Fast (400 kHz), Fast-Plus (1 MHz)
- Page Write Buffer: 16 bytes
- Low Power CMOS Technology
- Temperature Range: -40°C to +85°C (Industrial), -40°C to +125°C (Automotive Grade 1)
- Package: US 8-Lead
- Built-in Power-On Reset circuitry
- Hardware write protection via WP pin
- Compliance: ROHS, Halogen Free, Pb-Free
- Noise suppression filters on I2C bus inputs
- Maximum Write Time: 4 ms
- Supports cascading for multiple device addressing, up to eight N24C02, four N24C04, two N24C08, and one N24C16 on bus
Buy the ON Semiconductor Series 12C EEPROM: N24C02UDTG
Discover the high-quality CMOS Serial EEPROM with capacities from 2-Kb to 16-Kb, supporting standard, fast, and fast-plus I2C protocols. Designed for low power operation and high endurance, these devices feature a 16-byte page write buffer, 100-year data retention, and automotive-grade temperature range options. With hardware write protection, noise filtering, and RoHS compliance, they are ideal for industrial, automotive, and embedded applications. Order your CMOS Serial EEPROM online today for dependable, long-lasting memory solutions.
Order your ON Semiconductor Series 12C EEPROM N24C02UDTG today and ensure reliable, low power memory solutions for your industrial and automotive projects.
Frequently Asked Questions
Where can I buy ONSEMI N24C02UDTG?
You can click on the BUY or RFQ button to purchase N24C02UDTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part N24C02UDTG?
You can download the N24C02UDTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of N24C02UDTG?
ONSEMI
