ONSEMI NB3L553DG Clock Buffer
The 1-to-4 clock fan-out buffer guarantees low skew and efficient clock distribution, supporting frequencies up to 200MHz. Its design minimizes output-to-output skew to 35ps, ensuring precise timing. The device features low phase jitter, with 29 fs RMS at 20 MHz, and can place outputs in three-state mode using the OE pin. It is 5V tolerant for input clocks, making it suitable for networking clocks. Packaged in an 8-pin SOIC, it operates across an industrial temperature range and is Pb-free, ensuring reliability in demanding environments.
ONSEMI NB3L553DG Clock Buffer Specifications:
- Input/Output Clock Frequency up to 200 MHz
- Low Skew Outputs (35 ps), Typical
- RMS Phase Jitter (12 kHz — 20 MHz): 29 fs (Typical)
- Output goes to Three-State Mode via OE
- Operating Range: Vpp = 2.375 V to 5.25 V
- 5 V Tolerant Input Clock
- Supported in 8-pin SOIC package
- Industrial Temperature Range from -40°C to +85°C
- Pb-Free Device
- Supports clock distribution in networking applications
- Supports input voltage range for Vp from 2.375 V to 5.25 V
- Maximum power supply current at 135 MHz: 30 mA
- Propagation delay (Vpp = 3.3V): 2.0 to 4.0 ns
- Output-to-output skew: 35 to 50 ps
- Device-to-device skew: up to 500 ps
- Thermal resistance (SOIC-8): 190 °C/W junction-to-ambient

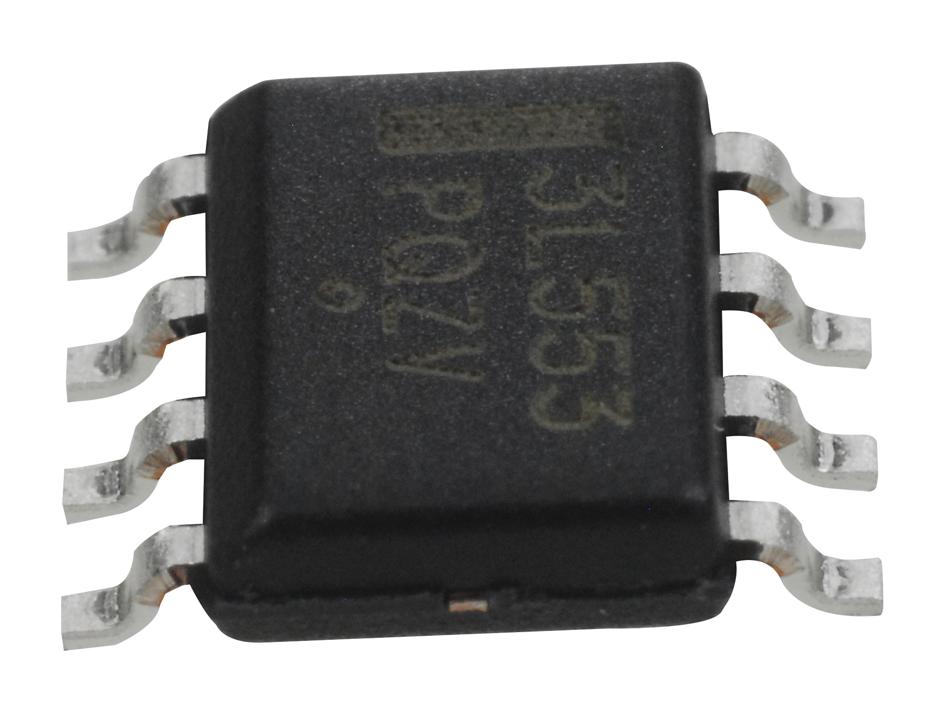

Buy the ON Semiconductor Series NB3L553 Clock Buffer: NB3L553DG
Buy the ON Semiconductor Series NB3L553 clock buffer online today for precise clock distribution in high-speed systems. Designed for minimal skew and low jitter, this device supports frequencies up to 200MHz. Its 8-pin SOIC package makes it easy to integrate into your designs. The device features a three-state output with OE control, 5V tolerant inputs, and a broad industrial temperature range, ensuring durability and performance in demanding environments. Order now to improve your systems' timing accuracy and reliability.
Order your ON Semiconductor Series NB3L553 clock buffer today and enhance your high-speed clock distribution with low skew and reliable performance.
