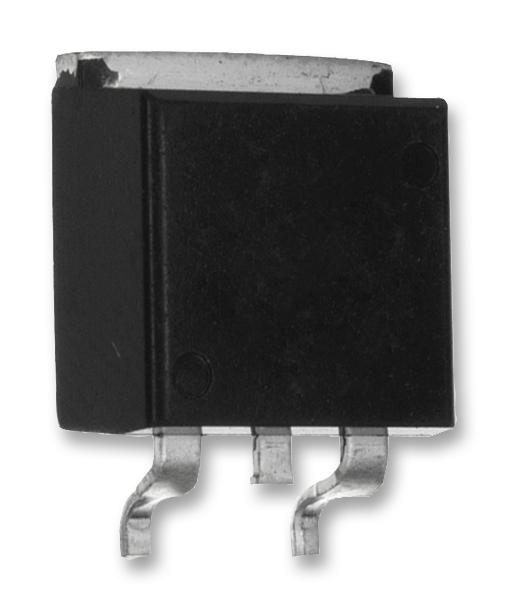

ONSEMI MC78M12ABDTRKG 12V Adjustable Voltage Regulator
The MC78M12ABDTRKG is a high-reliability adjustable voltage regulator designed for automotive and industrial applications. It provides a stable 12V output, featuring internal thermal overload protection, short circuit current limiting, and safe-area compensation. The device is AEC-Q100 qualified, PPAP capable, and Pb-Free. Its robust design ensures durability under high temperature and voltage conditions, making it suitable for demanding environments such as automotive electronics, industrial control systems, and manufacturing automation. The regulator supports up to 2500 units per reel with an operating temperature range of -40°C to +125°C, guaranteeing long-term performance.
ONSEMI MC78M12ABDTRKG 12V Adjustable Voltage Regulator Specifications:
- Maximum Input Voltage: 60 V (Ty = 0° to +125°C)
- Output Voltage: 12 V
- Output Voltage Variation: 14 - 12.6 V
- Line Regulation: 50 mV
- Load Regulation: 120 mV (200 mA), 240 mV (500 mA)
- Quiescent Current: 6.0 mA (Typ)
- Dropout Voltage: 2.0 V
- Peak Output Current: 700 mA
- Short Circuit Current Limit: 350 mA
- Operating Temperature Range: -40°C to +125°C
- Package: DPAK-3
- Device is Pb-Free and AEC-Q100 qualified
- Includes internal thermal overload and short circuit protection
- Supports up to 2500 units per reel with tape & reel packaging
- Thermal Resistance, Junction-to-Air: 92°C/W
- Thermal Resistance, Junction-to-Case: 5.0°C/W
- Designed for high durability in automotive and industrial environments
Buy the ON Semiconductor Series NCV78M00 12V Voltage Regulator: MC78M12ABDTRKG
Order the ON Semiconductor MC78M12ABDTRKG online today and ensure your projects benefit from a robust 12V adjustable regulator. Featuring internal thermal overload protection, short circuit limiting, and safe-area compensation, this device guarantees durability in automotive, industrial, and manufacturing environments. Its thermal resistance of 92°C/W and a maximum input voltage of 60V make it suitable for high-stress applications. With a 700 mA peak output current capacity, the MC78M12ABDTRKG is ideal for long-term reliable performance, available now in tape & reel packaging for easy procurement.
Buy ON Semiconductor MC78M12ABDTRKG now and experience unmatched reliability and performance in demanding automotive and industrial applications.
Frequently Asked Questions
Where can I buy ONSEMI MC78M12ABDTRKG?
You can click on the BUY or RFQ button to purchase MC78M12ABDTRKG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC78M12ABDTRKG?
You can download the MC78M12ABDTRKG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC78M12ABDTRKG?
ONSEMI
