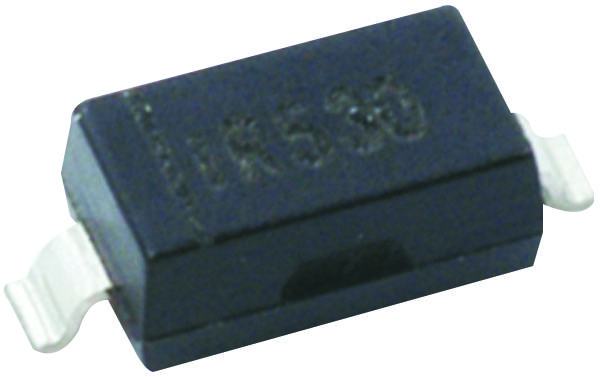

ONSEMI MMSZ5241BT1G Zener Diode
These 500 mW surface mount Zener diodes are designed in the SOD-123 package, offering a compact solution for precision voltage regulation in high-density electronic circuits. Suitable for automotive, industrial, and general-purpose applications, they provide reliable performance with a wide reverse voltage range from 2.4 V to 110 V at thermal equilibrium. Featuring high ESD ratings of over 16 kV, Pb-Free construction, and a maximum operating temperature of 150°C, these diodes are ideal for automated assembly and demanding environments.
ONSEMI MMSZ5241BT1G Zener Diode Specifications:
- Package Type: SOD-123
- Maximum Power Dissipation: 500 mW on FR-4 or FR-5 Boards
- Zener Voltage Range: 2.4 V to 110 V @ Thermal Equilibrium
- Maximum Soldering Temperature: 260°C for 10 seconds
- Polarity: Cathode marked with polarity band
- Mechanical: Transfer-molded, corrosion resistant plastic case
- Operating Temperature Range: -85°C to +150°C
- ESD Rating: Class 3 (> 16 kV) per Human Body Model
- Lead Finish: Pb-Free, RoHS Compliant
- Maximum Junction-to-Ambient Resistance: 340°C/W
- Maximum Junction-to-Lead Resistance: 150°C/W
- Certifications: UL 94 V-0 Flammability Rating
Buy the ON Semiconductor Series SZ Zener Voltage Regulator: MMSZ5241BT1G
Purchase the ON Semiconductor Series SZ Zener Diode MMSZ5241BT1G online today for high-quality, reliable voltage regulation solutions. Perfect for automotive, industrial, and high-density electronic applications, this diode features a 500 mW power rating, wide Zener voltage range, and Pb-Free compliance. Its compact SOD-123 package ensures easy automation-compatible assembly, making it an excellent choice for engineers seeking durable and high-performance components. Secure your inventory with fast online ordering and get prompt delivery to keep your projects flowing smoothly.
Order your ON Semiconductor Series SZ MMSZ5241BT1G today and ensure reliable voltage regulation with high ESD immunity for your industrial or automotive electronics.
Frequently Asked Questions
Where can I buy ONSEMI MMSZ5241BT1G?
You can click on the BUY or RFQ button to purchase MMSZ5241BT1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MMSZ5241BT1G?
You can download the MMSZ5241BT1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MMSZ5241BT1G?
ONSEMI
