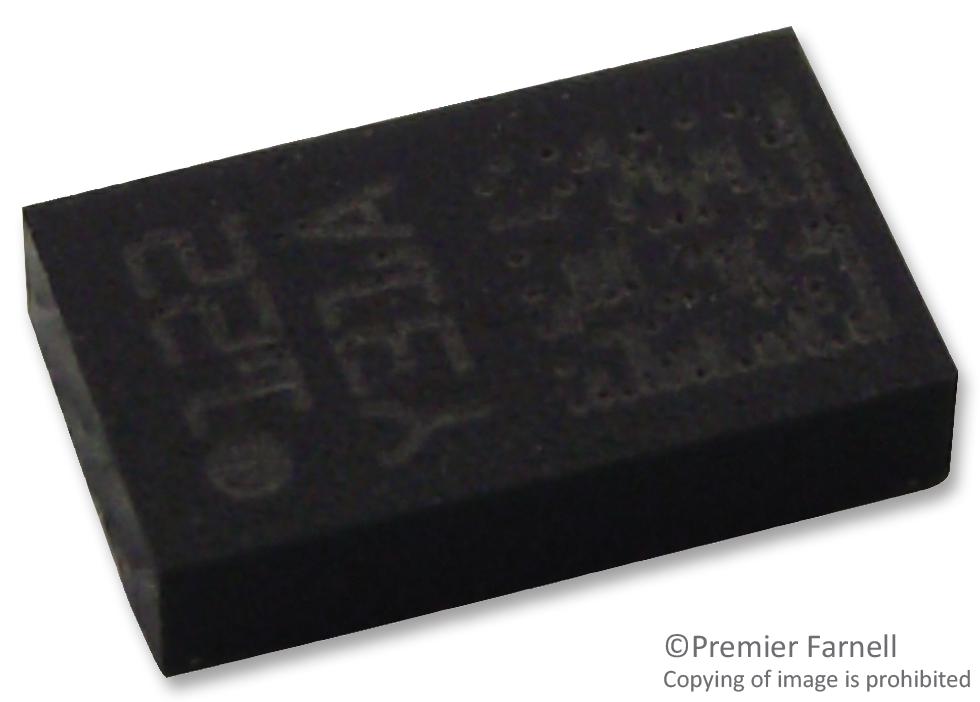

ONSEMI NCHRSL10101S51ACG Bluetooth Module
The RSL10 System-in-Package is a compact, fully certified Bluetooth 5 module integrating a radio SoC, onboard antenna, and passive components in a small package designed for low-power wireless applications. It features an Arm Cortex-M3 processor, dual DSP cores, and supports various protocols, including BLE and custom ones, with firmware over-the-air updates. Its ultra-low power consumption, deep sleep modes, and flexible interfaces make it ideal for IoT, wearables, and sensor applications requiring long battery life and reliable connectivity.
ONSEMI NCHRSL10101S51ACG Bluetooth Module Specifications:
- Bluetooth 5 certified, supports BLE and 2.4 GHz custom protocols
- Arm Cortex-M3 processor, 48 MHz maximum clock speed
- 384 kB Flash memory, 76 kB Program memory, 88 kB Data memory
- Supply Voltage Range: 1.1 - 3.3 V
- Current Consumption (Rx): 5.6 mA at 1.25 V VBAT, 3.0 mA at 3 V VBAT
- Peak Tx Current (0 dBm): 8.9 mA at 1.25 V VBAT, 4.6 mA at 3 V VBAT
- Deep Sleep Current (IO Wake-up, 1.25 V): 50 nA; RAM retention: 300 nA
- Range up to 100 meters, Tx Power: -17 to 0 dBm, RF sensitivity: -93 dB
- Integrated onboard antenna, supporting various ground plane sizes
- Supports firmware over-the-air updates, low-power deep sleep, and standby modes
- Operating temperature: 0°C to 50°C; RoHS compliant
- Dimensions: 8x6 mm, case 127EY, RoHS and regulatory certifications pending
Buy the ON Semiconductor RSL10-10151S51ACG – Reliable Bluetooth 5 for Industrial Applications
Purchase the ON Semiconductor Bluetooth Module today and integrate low-power, reliable Bluetooth 5 connectivity into your wireless applications. With onboard antenna, flexible interfaces, and firmware upgrade support, it ensures a scalable solution for IoT, wearables, and industrial systems. Its ultra-low sleep currents and high RF sensitivity enable extended battery life and long-range communication, making it ideal for various industrial and IoT wireless solutions. Order now to enhance your product’s wireless capabilities efficiently and confidently.
Get ON Semiconductor RSL10-10151S51ACG today—built for precision and long-lasting durability in wireless industrial solutions.
Frequently Asked Questions
Where can I buy ONSEMI NCHRSL10101S51ACG?
You can click on the BUY or RFQ button to purchase NCHRSL10101S51ACG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCHRSL10101S51ACG?
You can download the NCHRSL10101S51ACG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCHRSL10101S51ACG?
ONSEMI
