ONSEMI PZTA14 High-Gain NPN Transistor
The PZTA14 is a high-gain NPN Darlington transistor designed for applications requiring extremely high current gain at collector currents up to 1.0 A. Sourced from Process 05, it features a collector-emitter voltage of 30 V, emitter-base voltage of 10 V, and continuous collector current of 12 A. Packaged in a SOT-23 package with dimensions suitable for compact circuit designs, it offers a total device dissipation of 625 mW and thermal resistances of 83.3°C/W junction-to-case and 200°C/W junction-to-ambient. Ideal for high-gain switching and amplification tasks, it is suitable for a variety of electronic functions requiring high current gain and reliable performance.
ONSEMI PZTA14 High-Gain NPN Transistor Specifications:
- Collector-Emitter Voltage: 30 V
- Collector-Base Voltage: 30 V
- Emitter-Base Voltage: 10 V
- Collector Current - Continuous: 12 A
- Junction Temperature Range: -55 to +150 °C
- Total Device Dissipation: 625 mW
- Thermal Resistance, Junction to Case: 83.3 °C/W
- Thermal Resistance, Junction to Ambient: 200 °C/W
- Package Type: SOT-23
- Dimensions: 0.0750+0.0050 in x 0.0510+0.0040 in x 0.0375+0.0025 in

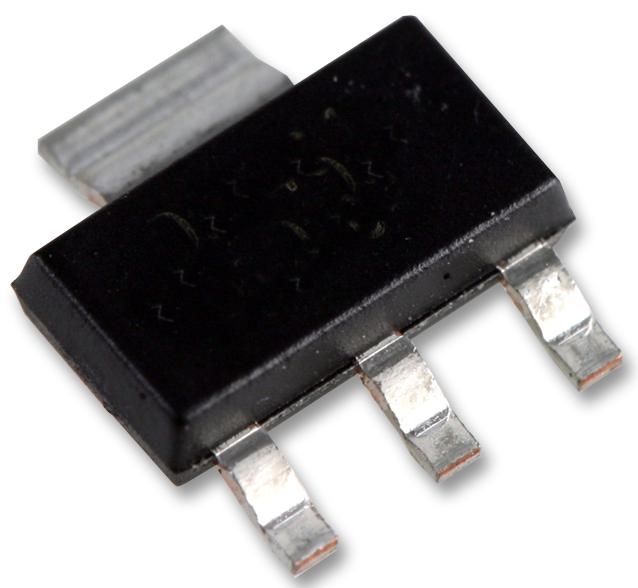

Buy the Buy ON Semiconductor PZTA14 Part Number PZTA14 Online
Purchase the ON Semiconductor high-gain NPN transistor PZTA14 online today. Designed for high collector current and excellent thermal management, it features a collector-emitter voltage of 30 V, collector-base voltage of 30 V, emitter-base voltage of 10 V, and continuous collector current of 12 A. Packaged in a compact SOT-23 form factor, it offers a total dissipation of 625 mW and optimal thermal resistances for reliable operation. Perfect for amplification, switching, and electronic signal processing in space-constrained circuits, it provides high performance and durability for diverse electronic applications.
Get ON Semiconductor PZTA14 today—built for high current gain and reliable performance in compact designs.
