ONSEMI NCP1230D165R2G PWM Controller
The NCP1230 is a high-performance PWM controller designed for low standby power in medium-to-high power switch-mode power supplies. It features current-mode operation, internal ramp compensation, a lossless high-voltage startup circuit, and cycle skipping at light loads to reduce no-load power consumption. Key protections include latched overload and overvoltage protections, internal soft-start, frequency jittering for EMI reduction, and an event management scheme to disable PFC during standby. Suitable applications include notebook adapters, battery chargers, set-top boxes, TVs, and monitors, providing efficiency and reliable operation in compact packages.
ONSEMI NCP1230D165R2G PWM Controller Specifications:
- Package Types: SOIC-8, SOIC-7, PDIP-7
- Maximum Voltage on HV Pin: 500 V
- Operating Voltage Range: Vcc 4.0 V to 18 V
- Peak Drive Current: ±500 mA/-800 mA
- Switching Frequencies: 65 kHz, 100 kHz, 133 kHz
- Internal Ramp Voltage: 2.3 Vpp
- Max Junction Temperature: 150°C
- Thermal Resistance (SOIC): 178 °C/W
- Maximum Power Dissipation (SOIC): 0.702 W
- Soft-Start Duration: 2.5 ms
- Protection: Latched overload, overvoltage, thermal shutdown
- Input voltages: PFC Vcc pin up to 35 mA, Feedback pin divided for regulation, Voltage Sense up to 18 V
- Frequency Jittering: ±6.4% for EMI reduction
- External ramp compensation: 4.69 kΩ resistor recommended for specific designs
- Oscillation Frequencies: 65 kHz, 100 kHz, 133 kHz
- Target applications: Notebook adapters, offline battery chargers, set-top box power supplies, consumer electronics

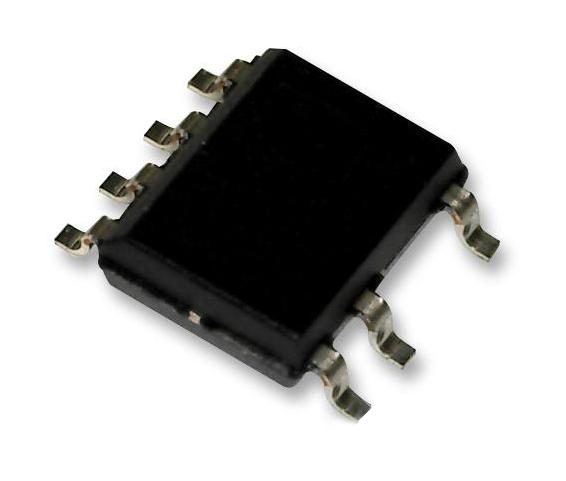

Buy the ON Semiconductor Series NCP Series PWM: NCP1230
Purchase the ON Semiconductor NCP1230 PWM controller online today. Designed for high efficiency, low standby power, and advanced protection features, it is ideal for your switch-mode power supplies. Its internal ramp compensation, cycle skipping at light loads, and EMI reduction techniques ensure reliable operation and compliance with modern efficiency standards. Suitable for notebook adapters, battery chargers, set-top boxes, and consumer electronics, this Pb-Free device offers robust performance. Order now to benefit from a compact, high-performance power solution that meets your design requirements easily and efficiently.
Get ON Semiconductor NCP1230 today—built for precision and long-lasting durability in power supply applications.
