ONSEMI NCP136AFCT105T2G Low Dropout Voltage Regulator
The NCP136 is a dual-rail very low dropout voltage regulator with a 700 mA maximum output current, featuring an NMOS pass transistor for efficient voltage regulation from Vx. It offers low noise, high stability, and precise output voltage from 0.4 V to 1.8 V with ±1% accuracy over temperature. Designed for space-constrained, noise-sensitive applications such as smartphones, tablets, and cameras, it includes features like a logic enable input, active discharge, low bias current, and robust thermal protection, ensuring reliable operation in portable electronic devices.
ONSEMI NCP136AFCT105T2G Low Dropout Voltage Regulator Specifications:
- Input Voltage Range: 0 V to 5.5 V
- Bias Voltage Range: 2.5 V to 5.5 V
- Output Voltage Range: 0.4 V to 1.8 V (Fixed options available)
- Maximum Output Current: 700 mA
- Dropout Voltage: Typ. 40 mV at 700 mA
- Accuracy: ±1% over temperature
- Dropout Voltage: 40-60 mV at 700 mA
- Enable Pin Voltage Threshold: >0.9 V enabled, <0.4 V disabled
- Low Bias Input Current: Typ. 80 uA
- Quiescent Bias Enable Current: Typ. 0.5 uA in disable mode
- Active Discharge Optional
- Stable with Ceramic Capacitors (4.7 to 47 uF)

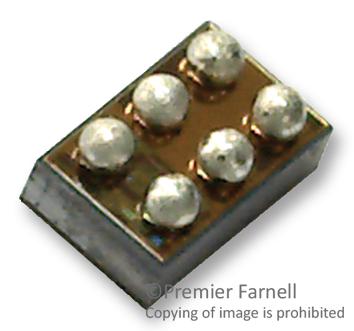

- Package: WLCSP6, 1.4 mm x 0.8 mm
- Thermal Shutdown: Activates at 160°C, recovers at 140°C
Buy the ON Semiconductor NCP136 U–2013 Reliable Low Dropout Voltage Regulator for Industrial Applications
Purchase the ON Semiconductor NCP136 online today and enhance your electronic systems with a compact, efficient, and highly reliable low dropout regulator. Perfect for battery-powered devices, smartphones, cameras, and industrial automation, it ensures precise voltage regulation with low noise and minimal bias current. Its space-efficient WLCSP6 package and stability with ceramic capacitors offer flexible design integration. Enjoy fast delivery, trusted quality, and technical support by ordering online now to upgrade your portable and industrial applications with confidence.
Buy ON Semiconductor NCP136 now and experience unmatched reliability and performance in low dropout voltage regulation for portable and industrial electronics.
Frequently Asked Questions
Where can I buy ONSEMI NCP136AFCT105T2G?
You can click on the BUY or RFQ button to purchase NCP136AFCT105T2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP136AFCT105T2G?
You can download the NCP136AFCT105T2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP136AFCT105T2G?
ONSEMI
