ONSEMI NCP137AFCTCADJT2G Voltage Regulator
The NCP137 is a low-noise, very low dropout CMOS voltage regulator capable of delivering up to 700 mA. It features an NMOS pass transistor, an adjustable output from 0.5 V to 3.0 V, and a dedicated bias supply voltage (Vpras) for stable operation. Designed for space-constrained, noise-sensitive applications, the device offers high accuracy, low quiescent current, and optional output discharge. Its compact WLCSP6 package makes it ideal for battery-powered equipment, smartphones, cameras, and portable electronics requiring efficient, stable power regulation with low noise and low dropout characteristics.
ONSEMI NCP137AFCTCADJT2G Voltage Regulator Specifications:
- Input Voltage Range: Vout to 5.5 V
- Bias Voltage Range: 2.5 V to 5.5 V
- Output Voltage Range: 0.4 V to 1.8 V (Fixed), 0.5 V to 3.0 V (Adjustable)
- Dropout Voltage: Typ. 40 mV at 700 mA
- Low Bias Input Current: Typ. 35 μA
- Disable Mode Bias Current: Typ. 0.5 μA
- Output Voltage Accuracy: ±1% over Temperature, 0.5% @ 25°C
- Stable with 4.7 μF Ceramic Capacitor

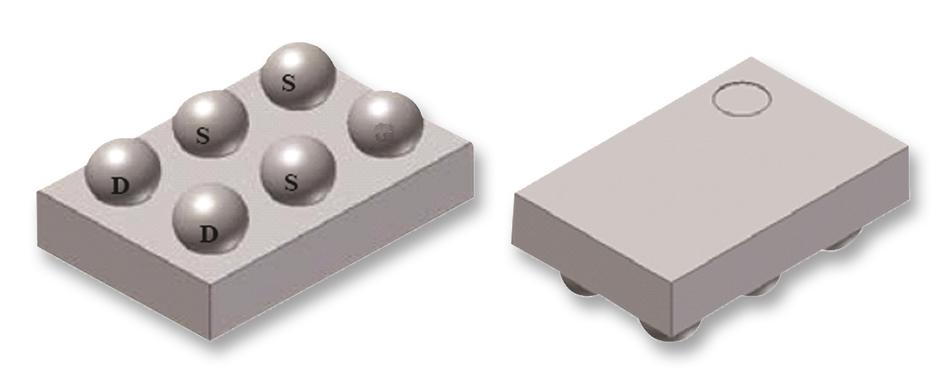

- Package: WLCSP6, 1.2 mm x 0.8 mm, 0.4 mm pitch
- Features: Active Discharge, Enable Control, Reverse Discharge Protection
- Protection: Thermal Shutdown, Current Limiting
- Compliance: RoHS, Pb-Free, Halogen-Free
Buy the ON Semiconductor Series VLDO: Very Low Dropout CMOS Voltage Regulator: NCP137AFCTCADJT2G
Buy the ON Semiconductor Series VLDO NCP137AFCTCADJT2G today for your portable and space-constrained applications. This low-noise, 700 mA CMOS regulator offers excellent stability, low dropout voltage, and adjustable output voltage from 0.5 V to 3.0 V. Its compact WLCSP6 package makes it ideal for battery-powered devices like smartphones, cameras, and IoT gadgets. With high accuracy, low quiescent current, and optional output discharge, this regulator provides dependable power management to optimize performance and extend battery life in your critical electronic applications.
Order your ON Semiconductor Series VLDO NCP137AFCTCADJT2G today and ensure reliable, low-noise power regulation for your compact and noise-sensitive projects.
Frequently Asked Questions
Where can I buy ONSEMI NCP137AFCTCADJT2G?
You can click on the BUY or RFQ button to purchase NCP137AFCTCADJT2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP137AFCTCADJT2G?
You can download the NCP137AFCTCADJT2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP137AFCTCADJT2G?
ONSEMI
