ONSEMI NCP148AFCT280T2G Low Noise Regulator
The NCP148 is an ultra-low noise, high PSRR linear regulator capable of supplying 450 mA, designed for RF and analog circuits. It features a soft-start function, low quiescent current of 55 μA, and very low dropout voltage of 150 mV at full load. The device operates over 1.9 V to 5.5 V input and offers fixed output options from 1.8 V to 5.14 V. Its small 0.65 mm x 0.65 mm Chip Scale Package (CSP) ensures compact design suitable for battery-powered applications like smartphones, cameras, and IoT devices. It includes thermal, current overload, and short-circuit protections.
ONSEMI NCP148AFCT280T2G Low Noise Regulator Specifications:
- Operating Input Voltage Range: 1.9 V to 5.5 V
- Output Voltage Options: 1.8 V to 5.14 V
- Output Current: 450 mA
- Dropout Voltage: 150 mV at 450 mA load
- Input Capacitor: 1 μF ceramic (X7R or X5R recommended)
- Output Capacitor: 1 μF ceramic with stable performance down to 0.7 μF
- Quiescent Current: Typ. 55 μA
- Standby Current: Typ. 0.1 μA
- Power Supply Rejection Ratio (PSRR): Typ. 98 dB at 20 mA, 1 kHz
- Output Voltage Noise: 10 μVRMS
- Operating Temperature Range: -40°C to +125°C

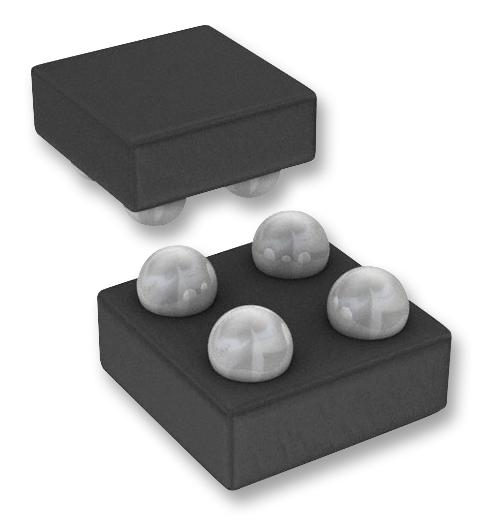

- Package: WLCSP4, 0.65 mm x 0.65 mm x 0.33 mm CASE 567JZ
- Protection: Overcurrent, thermal shutdown, short-circuit
Buy the ON Semiconductor Series NCP148 Low Noise Regulator: 280T2G
Purchase the ON Semiconductor NCP148280T2G online today for exceptional noise performance and high PSRR that meet demanding RF and analog circuit requirements. Designed for compact applications, this ultra-low noise regulator offers reliable operation with a small CSP package, making it ideal for battery-powered devices like smartphones, tablets, cameras, and IoT equipment. Its advanced features include soft-start, low dropout voltage, and comprehensive protection to ensure device longevity and optimal functionality. Order online now for fast delivery and reliable performance.
Get ON Semiconductor NCP148280T2G today—built for ultra-low noise performance and high reliability in RF and analog applications.
Frequently Asked Questions
Where can I buy ONSEMI NCP148AFCT280T2G?
You can click on the BUY or RFQ button to purchase NCP148AFCT280T2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP148AFCT280T2G?
You can download the NCP148AFCT280T2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP148AFCT280T2G?
ONSEMI
