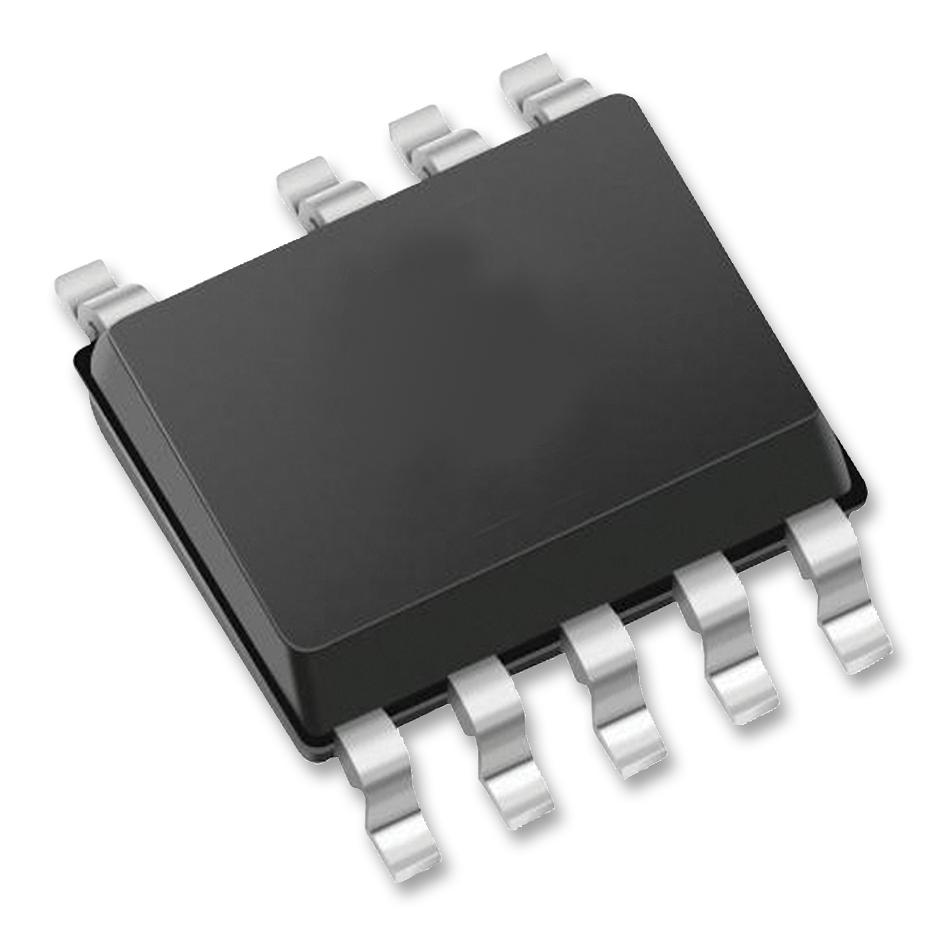

ONSEMI NCP1616A2DR2G Power Factor Correction Controller
The NCP1616 is a high-efficiency power factor correction controller designed for LED drivers, PC power supplies, and off-line appliances. It utilizes a current controlled frequency foldback (CCFF) topology to operate in critical conduction mode for maximum efficiency and minimal standby power loss. Features include an integrated high voltage start-up circuit, skip mode for low line operation, fast transient response, valley switching, and comprehensive safety protections such as overvoltage, overcurrent, undervoltage, and thermal shutdown. The device is housed in a compact SOIC-9 package, ensuring robust and reliable operation with minimal external components.
ONSEMI NCP1616A2DR2G Power Factor Correction Controller Specifications:
- Operating Voltage Range: 9.5 V to 28 V
- Maximum Drive Current: -500 mA/+800 mA
- Line Voltage Detection: 110 V or 220 V ac mains
- Critical Conduction Mode Operation in CrM
- Minimum Operating Frequency: 26 kHz
- Input Voltage Detection Threshold: 236 V (high line) or 222 V (low line)
- Maximum Temperature: 150°C junction, 300°C soldering
- Thermal Resistance, Junction to Ambient: 210 °C/W
- Discharge Timer Duration: 32 ms
- Start-up Threshold: 17 V
- Brownout Detection Threshold: 111 V
- Protection Features: UVP, BUV, line overvoltage, thermal shutdown, soft OVP, fast OVP
- Package: SOIC-9
- Compliance: Pb-free, halogen free
- Max Output Power: suitable for applications up to several hundred watts depending on external components
- Isolation: Galvanic isolation via external design, not built-in
Buy the ON Semiconductor Series NCP1616 Power Factor Controller: NCP1616A2DR2G
Purchase your ON Semiconductor Series NCP1616A2DR2G power factor correction controller online today and optimize your power supply designs. Featuring integrated high voltage start-up, skip mode for low line efficiency, and comprehensive safety protections, this compact SOIC-9 package ensures reliable operation with minimal external components. Its critical conduction mode operation maximizes efficiency while standard protections like overvoltage, undervoltage, and thermal shutdown safeguard your systems. Ideal for LED drivers, PC power supplies, and off-line appliances, ensuring high performance and compliance in your projects.
Order your ON Semiconductor Series NCP1616A2DR2G high-efficiency power factor correction controller today and enhance the reliability and performance of your LED drivers and power supplies.
Frequently Asked Questions
Where can I buy ONSEMI NCP1616A2DR2G?
You can click on the BUY or RFQ button to purchase NCP1616A2DR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP1616A2DR2G?
You can download the NCP1616A2DR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP1616A2DR2G?
ONSEMI
