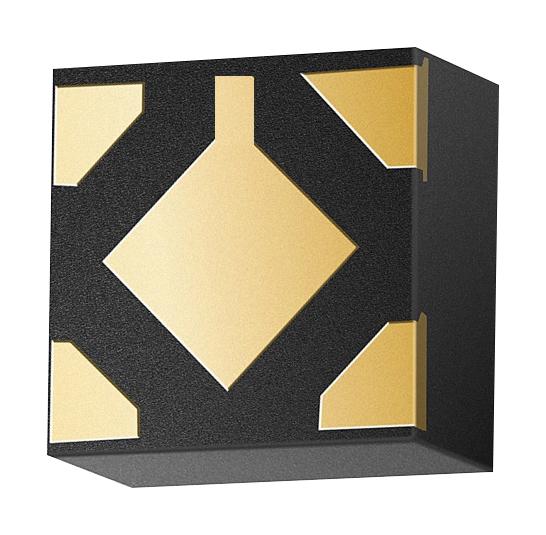

ONSEMI NCP171AMX330325TCG dual-mode LDO regulator
The NCP171 is a dual-mode Low Dropout regulator in a compact XDFN4 package, offering up to 80 mA in active mode and as low as 50 nA in low power mode. It features an externally controlled ECO pin for dynamic switching between modes, enabling significant power savings for battery-powered applications. The device provides a programmable output voltage range from 0.6 V to 3.3 V with 50 mV steps, high PSRR of 65 dB at 1 kHz, and low dropout of 41 mV at 80 mA. It includes thermal shutdown, current limit, and active discharge to ensure reliability and stability in portable electronics and IoT systems.
ONSEMI NCP171AMX330325TCG dual-mode LDO regulator Specifications:
- Operating Input Voltage Range: 1.7 V to 5.5 V
- Output Voltage Range: 0.6 V to 3.3 V (50 mV steps)
- Maximum Current: 80 mA in Active Mode, 5 mA in Low Power Mode
- Quiescent Current: 50 nA in Low Power Mode, 1 mA in Active Mode
- Dropout Voltage: 41 mV typ. at 80 mA
- High PSRR: 65 dB at 1 kHz
- Thermal Shutdown and Current Limitation
- Package: XDFN4 1.2 x 1.2 mm
- Internally Programmable Output Offset: 50, 100, 150, 200 mV
- Switching Modes: Controlled via ECO pin for power savings
- Ground Pin: GND
- Enable Pin: ENA, logic high to enable, low to shutdown
- Line Regulation: 10 mV
- Load Regulation: 10 mV
- Temperature Range: -40°C to 85°C
- ESD Protection: Human Body Model 2000 V
Buy the ON Semiconductor 3.3V 50mV Offset 80mA Reliable Power Management for Industrial Applications
Purchase the ON Semiconductor NCP171 dual-mode low dropout regulator today to enhance your portable electronics with its ultra-low quiescent current, programmable output, and high PSRR. Its compact XDFN4 package ensures easy integration into space-constrained designs, ideal for battery-powered IoT and consumer devices. With features like thermal shutdown, active discharge, and output voltage offset programmability, this regulator offers stability and energy efficiency. Order now and ensure long-lasting, reliable power supply for your industrial and portable applications.
Get ON Semiconductor NCP171 series regulator today—designed for precision, low power consumption, and reliable performance in portable and industrial electronics.
Frequently Asked Questions
Where can I buy ONSEMI NCP171AMX330325TCG?
You can click on the BUY or RFQ button to purchase NCP171AMX330325TCG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP171AMX330325TCG?
You can download the NCP171AMX330325TCG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP171AMX330325TCG?
ONSEMI
