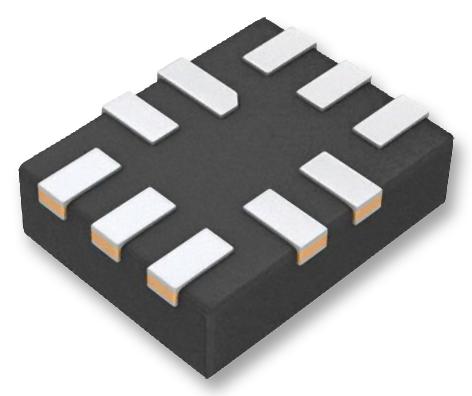

ONSEMI NCS214RMUTAG Current Sense Amplifier
The NCS214RMUTAG is a high-precision, ultra-low offset voltage current sense amplifier designed for accurate current measurement in power management and automotive applications. It features bidirectional, zero-drift operation with a wide input voltage range from -0.3 V to 26 V, and can operate from a single supply of 2.2 V to 26 V. Its low offset voltage of max 1 μV and low drift of 0.5 μV/°C enable highly reliable sensing across extended temperature ranges from -40°C to +125°C. Suitable for high-side and low-side sensing, it offers rail-to-rail output and low power consumption, packaged in compact UQFN10 or SC70-6 packages. Ideal for automotive, telecom, and power management systems requiring precise current sensing.
ONSEMI NCS214RMUTAG Current Sense Amplifier Specifications:
- Input Voltage Range: -0.3 V to 26 V
- Supply Voltage Range: 2.2 V to 26 V
- Offset Voltage: Max 1 μV
- Offset Drift: 0.5 μV/°C
- Gain: 500 V/V
- Output Swing: Rail-to-rail to Vs - 0.05 V
- Supply Current: 40 μA typ, 80 μA max
- Operating Temperature Range: -40°C to +125°C
- Package Options: UQFN10, SC70-6
- Input Bias Current: 39 μA typical
- Voltage Noise Density: 6 nV/√Hz at 1 kHz
- Bandwidth: 25 kHz (NCS211R variant)
- Power Supply Rejection Ratio: 40 dB
- Common-Mode Rejection Ratio: 125 dV/V
Buy the ON Semiconductor NCS214RMUTAG – Reliable Current Sense Amplifier for Industrial Applications
Enhance your power management and automotive sensing solutions with the ON Semiconductor NCS214RMUTAG. This high-precision, ultra-low offset current sense amplifier provides bidirectional zero-drift operation, wide input voltage range, and low power consumption. Its compact UQFN10 and SC70-6 packages enable easy integration into space-constrained systems. Designed for high-side and low-side current sensing, it ensures highly accurate measurements across extended temperature ranges from -40°C to +125°C. Perfect for automotive, telecom, and industrial applications requiring reliable, precise current monitoring.
Buy ON Semiconductor NCS214RMUTAG now and experience unmatched accuracy, low offset, and dependable performance in industrial systems.
Frequently Asked Questions
Where can I buy ONSEMI NCS214RMUTAG?
You can click on the BUY or RFQ button to purchase NCS214RMUTAG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCS214RMUTAG?
You can download the NCS214RMUTAG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCS214RMUTAG?
ONSEMI
