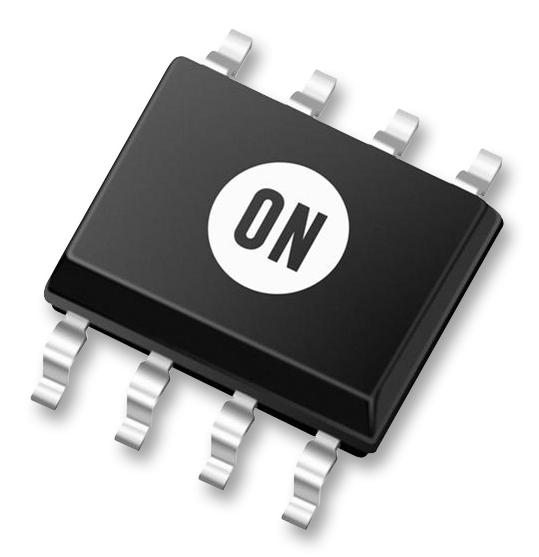

ONSEMI LP2951CDMR2G Adjustable Voltage Regulator
The LP2951 is a low-power, adjustable voltage regulator capable of delivering over 100 mA with an extremely low dropout voltage. It features a programmable output from 1.25 V to 29 V, an error output for regulation monitoring or reset functions, and a shutdown input for power management. Suitable for battery-powered and industrial applications, it offers internal current and thermal limiting, requires only a small output capacitor for stability, and is available in multiple packages including SOIC-8, Micro8, and PDIP-8. Automotive-grade NCV2951 variants are also available, qualified for harsh environments.
ONSEMI LP2951CDMR2G Adjustable Voltage Regulator Specifications:
- Output Voltage: 1.25 V to 29 V programmable
- Maximum Output Current: 100 mA
- Dropout Voltage: 380 mV at 100 mA
- Bias Current: 75 uA typical
- Input Voltage Range: 4.0 V to 30 V
- Thermal and Current Limit Protection: Yes
- Supply Voltage: Up to 32 V transient
- Output Stability: Requires only 1.0 uF capacitor
- Package Options: SOIC-8, Micro8, PDIP-8, DPAK
- Operating Temperature Range: -40°C to +125°C
- Line Regulation: 0.04% to 0.2%
- Load Regulation: 0.05% to 0.2%
- Error Output: Active low for regulation monitoring
- Shutdown Input: Logic level control
- AEC-Q100 qualified variants: NCV2951
Buy the ON Semiconductor Series LP2951 Adjustable Voltage Regulator: LP2951CDMR2G
Buy the ON Semiconductor LP2951CDMR2G adjustable voltage regulator online today to benefit from its low quiescent current, programmable output from 1.25 V to 29 V, and robust thermal and current protection. Ideal for battery-powered, industrial, and automotive applications, this compact regulator delivers over 100 mA with excellent line and load regulation, requiring only a minimal 1.0 uF output capacitor for stability. Choose from multiple packages including SOIC-8, Micro8, and PDIP-8 for versatile integration into your design and enjoy fast, reliable shipping.
Order your ON Semiconductor Series LP2951CDMR2G adjustable voltage regulator today and ensure reliable, low-power regulation for your battery and industrial projects.
Frequently Asked Questions
Where can I buy ONSEMI LP2951CDMR2G?
You can click on the BUY or RFQ button to purchase LP2951CDMR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part LP2951CDMR2G?
You can download the LP2951CDMR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of LP2951CDMR2G?
ONSEMI
