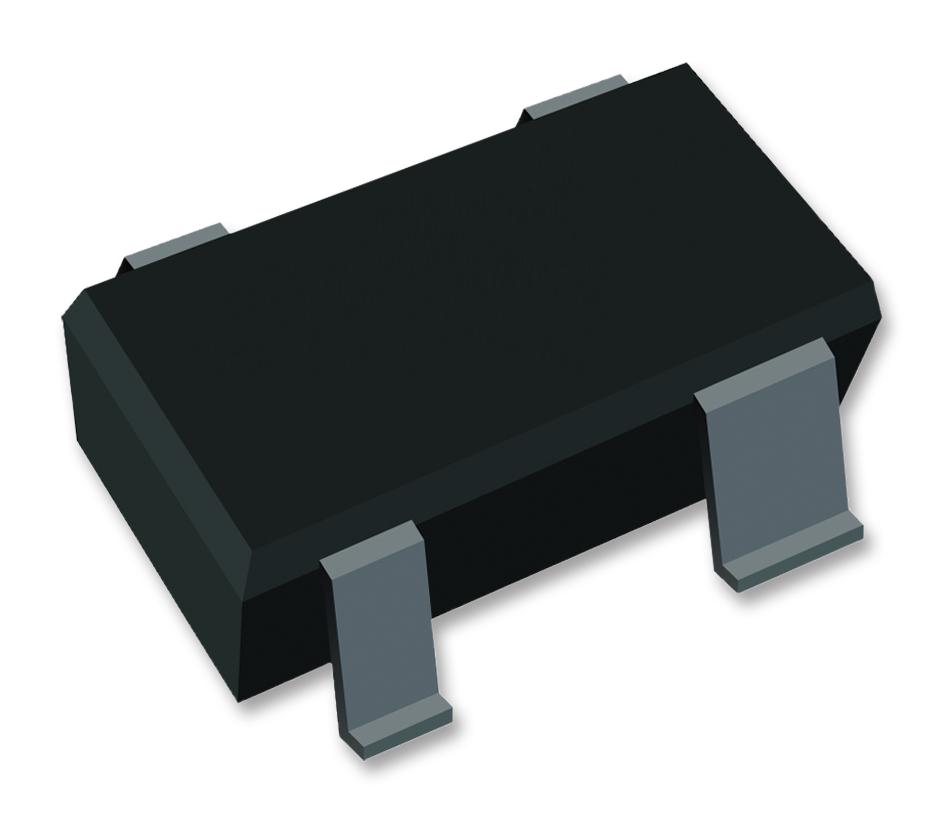

ONSEMI NCV663SQ33T1G Low-Dropout Voltage Regulator
This type of low-dropout linear regulator series is designed for portable battery-powered devices, providing ultra-low quiescent current of 2.5 μA. Featuring an error amplifier, voltage reference, and PMOS transistor, it ensures accurate output voltage with minimal power consumption. It supports output voltages from 1.5V to 5.0V, offering compatibility with ceramic capacitors and an enable pin for ON/OFF control. Suitable for handheld communication, cameras, automotive infotainment, and other portable applications, housed in compact SC82-AB packages for space-efficient designs.
ONSEMI NCV663SQ33T1G Low-Dropout Voltage Regulator Specifications:
- Output Voltage Range: 1.5V to 5.0V
- Quiescent Current: 2.5 μA typical
- Dropout Voltage: 170-950 mV depending on load and temperature
- Maximum Input Voltage: 6.0 V
- Operating Temperature: -40°C to 125°C (NCV) / 85°C (NCP)
- Package Type: SC82-AB (SC70-4)
- Thermal Resistance, Junction to Ambient: 330°C/W
- Line Regulation: 10-20 mV
- Load Regulation: 20-40 mV
- Maximum Power Dissipation: Up to 300 mW at 25°C with proper heat sinking
- Enable Pin: Active low to disable regulator
- ESR Range for Output Capacitors: 0.1 μF minimum, up to 10 Ω ESR acceptable
- Protection: Thermal shutdown and current limit
- Input Decoupling Capacitor: 1.0 μF ceramic or tantalum recommended
- Output Capacitor: Minimum 0.1 μF, larger sizes improve transient response
Buy the ON Semiconductor Series NCP662: Low-Dropout Voltage Regulator - 3.3V
Purchase the ON Semiconductor NCP662 3.3V low-dropout voltage regulator online today to ensure optimal power efficiency for your portable battery-powered applications. This ultra-low quiescent current regulator supports various output voltages from 1.5V to 5.0V, offering high accuracy, thermal protection, and compatibility with ceramic capacitors. Its compact SC82-AB package makes it ideal for space-constrained designs like mobile devices, cameras, and automotive infotainment systems. Order now for reliable, efficient voltage regulation tailored to your electronic needs.
Buy ON Semiconductor NCP662 now and experience unmatched reliability and performance in low-power portable devices with precise voltage regulation.
Frequently Asked Questions
Where can I buy ONSEMI NCV663SQ33T1G?
You can click on the BUY or RFQ button to purchase NCV663SQ33T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCV663SQ33T1G?
You can download the NCV663SQ33T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCV663SQ33T1G?
ONSEMI
