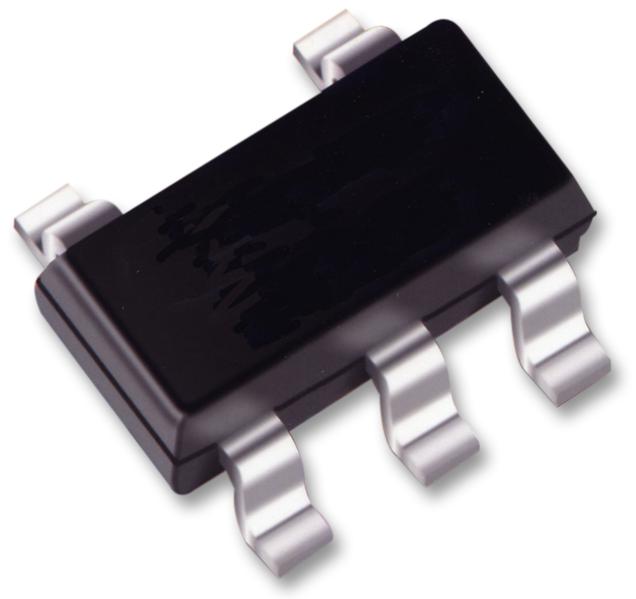

ONSEMI CAV4201TDGT3 High Power LED Driver
The CAV4201 is a high-efficiency step-down LED driver designed for high-current LED applications. It offers accurate current regulation through a patented control algorithm and a single RSET resistor for setting the LED current up to 350 mA. Its architecture provides low internal power dissipation, enabling compact packaging without heat sinking. Capable of operating at frequencies up to 1 MHz, it supports space-efficient designs with external inductors and includes features like overload protection, thermal shutdown, and open/short LED fault detection. Ideal for automotive, general lighting, and site-specific LED applications due to its reliability and flexible dimming options.
ONSEMI CAV4201TDGT3 High Power LED Driver Specifications:
- LED Drive Current up to 350 mA
- Compatible with 12 V and 24 V systems
- Handles transients up to 40 V
- Switching frequency up to 1 MHz
- High power efficiency up to 94%
- Operates with LED strings of up to 32 V
- Open and short LED protection
- Parallel configuration for higher output current
- Package: TSOT-23 5-lead low profile
- Enable, analog dimming, and shutdown control via CTRL pin
- Operating temperature range: -40 to +125°C
- Input voltage range: 6.5 to 36 V
- Inductor rating: minimum 700 mA current, inductance ≥ 22 uH
- Recommended external components include ceramic capacitors (4.7-10 uF), Schottky diode (40V, 500mA)
- Resistor RSET sets LED current; typical values: 8.25kΩ to 33kΩ
- Switching noise minimized through PCB layout precautions
- Overload and thermal shutdown safety features
