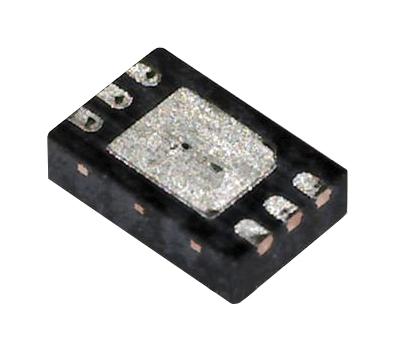

ONSEMI NCV8135AMT040TBG Low Dropout Voltage Regulator
The NCV8135 is a 500 mA very low dropout voltage regulator utilizing an NMOS pass transistor, offering stable, accurate output with low noise ideal for space-constrained, noise-sensitive applications. It features low quiescent current, fast start-up, and is suitable for automotive, consumer, and industrial equipment, including battery-powered devices, smartphones, and cameras. The device includes active discharge, enable control with hysteresis, and is stable with ceramic capacitors, making it an efficient, reliable regulation solution for compact electronic systems.
ONSEMI NCV8135AMT040TBG Low Dropout Voltage Regulator Specifications:
- Input Voltage Range: 0.4 V to 5.5 V
- Bias Voltage Range: 2.5 V to 5.5 V
- Fixed Output Versions Available: 0.4 V, 1.2 V
- Output Voltage Accuracy: ±1% over Temperature
- Ultra-Low Dropout Voltage: Typ. 53 mV at 500 mA
- Quiescent Bias Input Current: Typ. 35 µA
- Active Discharge Available (NCV8135A Option)
- Enable Pin with Internal Hysteresis
- Stable with Ceramic Capacitors; 10 µF to 22 µF recommended
- Thermal Shutdown Threshold: 160°C (rising), 140°C (decreasing)
- Input Voltage (Vin): up to 5.5 V
- Maximum Junction Temperature: 125°C
- ESD Protection (Human Body Model): 2000 V
- Package: 2 mm x 2 mm WDFN
Buy the ON Semiconductor Series VLDO Voltage Regulator: NCV8135
Purchase the ON Semiconductor NCV8135 low dropout regulator online today and benefit from its compact size, low noise, and high efficiency. Designed for portable, noise-sensitive applications, it provides stable output with low quiescent current, making it perfect for battery-powered devices such as smartphones, cameras, and industrial equipment. Its ability to operate with ceramic capacitors and active discharge functionality ensures excellent performance and reliability in space-constrained environments. Order now for quick delivery and seamless integration into your electronic systems.
Buy ON Semiconductor NCV8135 now and experience unmatched reliability and performance in space-efficient low dropout voltage regulation.
Frequently Asked Questions
Where can I buy ONSEMI NCV8135AMT040TBG?
You can click on the BUY or RFQ button to purchase NCV8135AMT040TBG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCV8135AMT040TBG?
You can download the NCV8135AMT040TBG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCV8135AMT040TBG?
ONSEMI
