ONSEMI 74LCX00MTCX Low Voltage NAND Gate
The 74LCX00 is a high-speed, low-voltage quad 2-input NAND gate with 5V tolerant inputs, fabricated using advanced CMOS technology. It features four logic gates, power-down high impedance inputs and outputs, and an output drive capability of 24mA. The device is designed for interfacing between 5V and 3V systems, offering excellent noise/EMI reduction and superior latch-up performance, exceeding JEDEC 78 standards. It is available in leadless DQFN, SOIC, SOP, and TSSOP packages, suitable for compact board designs in digital circuits.
ONSEMI 74LCX00MTCX Low Voltage NAND Gate Specifications:
- Supply Voltage: -0.5V to +7.0V
- Operating Voltage Range: 2.0V to 3.6V
- Input Voltage Range: 0V to 5.5V
- Output Voltage Level: 0V to Vcc
- Output Drive: 24mA at Voc = 3.0V
- Input Leakage Current: ±5.0μA at Vcc = 5.5V
- Maximum Propagation Delay: 6.2 ns
- ESD Resistance: >2000V (HBM), >200V (MM)
- Operating Temperature: -40°C to +85°C
- Package Types: 14-Lead SOIC, SOP, DQFN, TSSOP
- Pin Configuration: Inputs (An, Bn), Outputs (O), No Connect (N), Die Attach Pad (DAP)
- Conforms to JEDEC specifications for packages
- Designed for digital logic interfacing in mixed-voltage systems
- Advanced CMOS technology for high speed and low power consumption

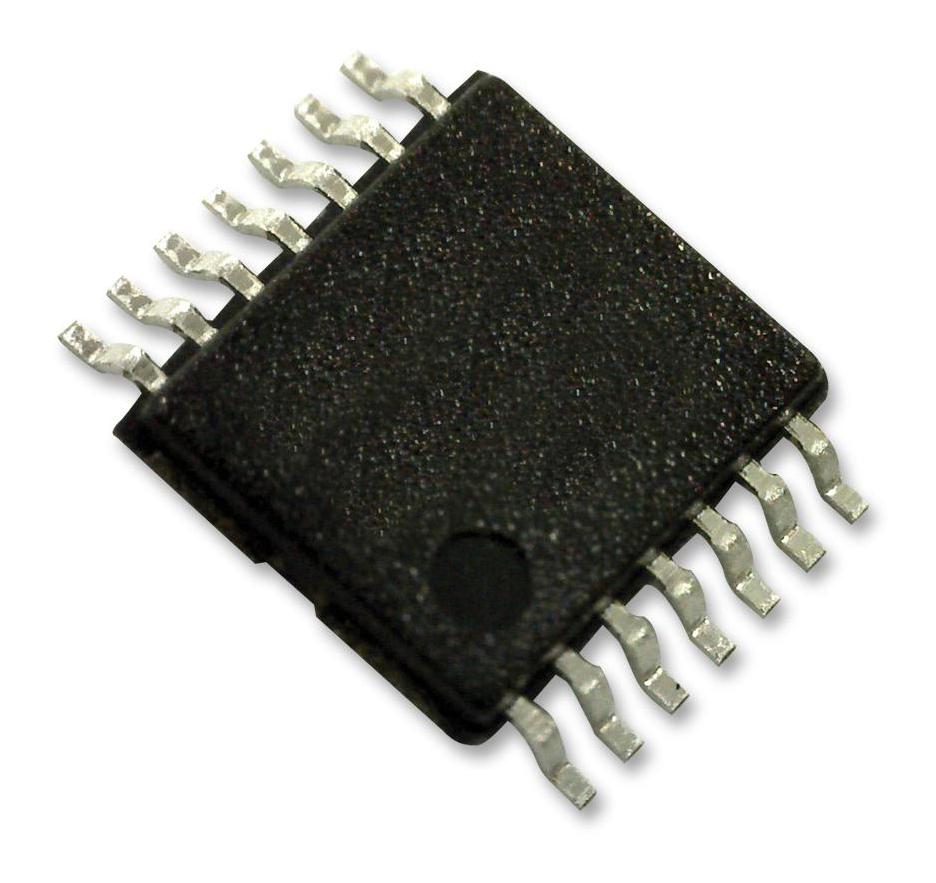

Buy the Buy ON Semiconductor 74LCX00 Low Voltage NAND Gate Part Number 74LCX00MTCX Online
