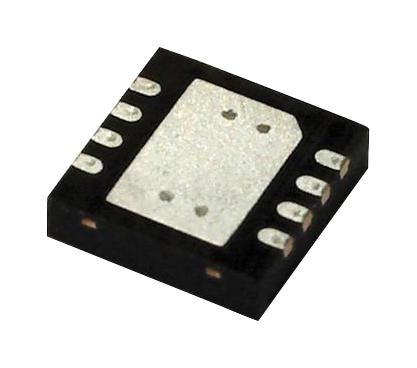

ONSEMI NCV8177AMTW110TCGA642 Low Dropout Voltage Regulator
The NCV8177 is a high-performance, low dropout linear voltage regulator providing 500mA output current, suitable for noise-sensitive portable and automotive applications. It features a low noise level of 48μV RMS, high Power Supply Rejection Ratio of 75dB at 1kHz, and excellent transient response for stable output voltage under dynamic load conditions. The device operates from 1.6V to 5.5V, with an output voltage range from 0.7V to 3.6V. Its small 1.0mm x 1.0mm or 2mm x 2mm packages allow easy integration into space-constrained designs, with robust overload, short circuit, and thermal protections enhancing reliability.
ONSEMI NCV8177AMTW110TCGA642 Low Dropout Voltage Regulator Specifications:
- Output Current: 500 mA
- Input Voltage Range: 1.6 V to 5.5 V
- Output Voltage Range: 0.7 V to 3.6 V
- Quiescent Current: typ. 60 μA
- Dropout Voltage: typ. 200 mV at 500 mA
- Line Regulation: 0.02% to 0.15%
- Load Regulation: 1 mA to 500 mA, 1-10 mV
- Temperature Range: -40°C to +125°C
- Package Types: XDFN4 1.0 mm x 1.0 mm, WDFNWS 2 mm x 2 mm
- Thermal Shutdown: 175°C
- Over-current Protection, Thermal Protection
- Noise: 48μV RMS, PSRR: 75 dB at 1 kHz
- Enable Pin: active high control, low quiescent current in standby
Buy the ON Semiconductor NCV8177 – Reliable Voltage Regulator for Industrial Applications
Order the NCV8177 online today to secure a compact, high-performance 500mA voltage regulator designed for automotive and portable devices. Its low noise, high PSRR, and wide input voltage range make it ideal for powering RF blocks, sensors, and precision electronics. The device’s small footprint and robust protection features ensure durable operation under various conditions. Easy to integrate with minimal external components, the NCV8177 provides stable, efficient power delivery, reducing thermal dissipation and conserving energy for space-constrained applications. Purchase now for reliable performance.
Buy ON Semiconductor NCV8177 now and experience unmatched reliability and performance in compact, noise-sensitive power systems.
Frequently Asked Questions
Where can I buy ONSEMI NCV8177AMTW110TCGA642?
You can click on the BUY or RFQ button to purchase NCV8177AMTW110TCGA642 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCV8177AMTW110TCGA642?
You can download the NCV8177AMTW110TCGA642 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCV8177AMTW110TCGA642?
ONSEMI
