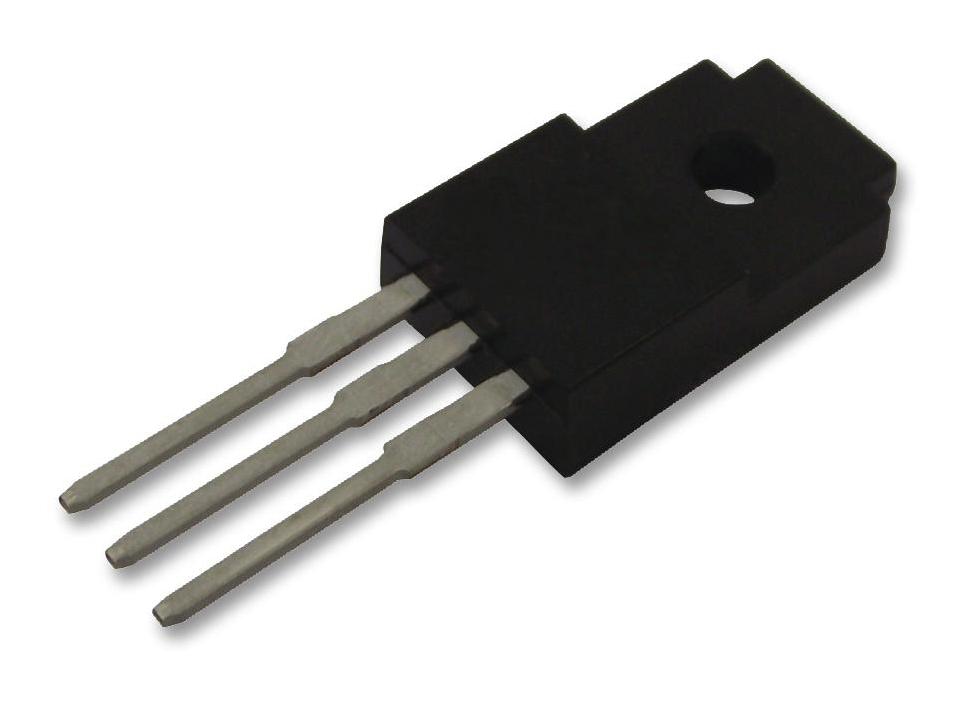

ONSEMI MBRF20L60CTG Schottky Barrier Rectifier
The MBRF20L60CTG is a Schottky barrier rectifier designed for efficient power rectification in industrial applications. This 20A, 60V device features low power loss, high surge capacity, and a guard-ring for stress protection, making it ideal for power supply output rectification, power management, and instrumentation. Its epoxy-molded case is UL 94 V-0 rated, corrosion-resistant, with readily solderable leads. The rectifier offers excellent thermal and electrical performance, ensuring reliability in demanding electrical systems, and is Pb-Free and RoHS compliant for environmentally conscious manufacturing.
ONSEMI MBRF20L60CTG Schottky Barrier Rectifier Specifications:
- Maximum Repetitive Reverse Voltage: 60 V
- Maximum Average Forward Current: 20 A
- Nonrepetitive Peak Surge Current: 240 A
- Reverse Recovery Time: Not specified
- Thermal Resistance Junction-to-Case: 5.2 °C/W
- Junction-to-Ambient: 75 °C/W
- Junction Temperature Range: -55°C to +150°C
- Storage Temperature Range: -65°C to +175°C
- Case: Epoxy, Molded, UL 94 V-0 rated
- Weight: Approximately 1.9 grams
- Lead Temperature for Soldering: Max. 260°C for 10 seconds
- Surge Current: 240A at rated load half wave, 60Hz
- Capacitance: Not specified
- Maximum Forward Voltage (10 A, 25°C): 0.57 V
- Maximum Reverse Current (Rated Voltage): 380 µA at 25°C
- Pb-Free and RoHS Compliant
- Package: TO-220 FullPak
Buy the ON Semiconductor MBRF20L60CTG – Reliable Schottky Barrier Rectifier for Industrial Applications
Purchase the ON Semiconductor MBRF20L60CTG online today and ensure robust power rectification with high efficiency and reliability. This 20A, 60V Schottky barrier rectifier features low forward voltage and high surge capacity, ideal for industrial power supply, instrumentation, and power management applications. Its epoxy case is UL 94 V-0 rated, corrosion-resistant, with solderable leads for easy installation. The device is Pb-Free and RoHS compliant, making it an environmentally friendly choice for demanding electrical systems. Order now for dependable performance and quick delivery.
Get ON Semiconductor MBRF20L60CTG today—built for precision, high surge capacity, and long-lasting durability in power management systems.
Frequently Asked Questions
Where can I buy ONSEMI MBRF20L60CTG?
You can click on the BUY or RFQ button to purchase MBRF20L60CTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MBRF20L60CTG?
You can download the MBRF20L60CTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MBRF20L60CTG?
ONSEMI
