ONSEMI NB3N3020DTG Clock Multiplier
The NB3N3020 is a high-precision, low-phase noise clock multiplier that accepts 5-27 MHz crystal or 2-210 MHz clock input, producing differential LVPECL and LVCMOS outputs at multiple of input frequency. Features include selectable clock multipliers, high jitter performance of 5 ps RMS, internal PLL lock within 3 ms, and power efficiency under 5 mA in power-down mode. Housed in a compact 16-pin TSSOP package, it supports industrial temperature range and is suitable for timing, clock generation, and synchronization applications requiring stable, low-noise clock signals.
ONSEMI NB3N3020DTG Clock Multiplier Specifications:
- Supply Voltage: 3.3 V ±10%
- Package: TSSOP-16, 5 mm x 4.4 mm
- Input Frequency Range: 5 - 27 MHz (crystal), 20 - 210 MHz (clock)
- Outputs: LVPECL (CLK2, CLK2b), LVCMOS/LVTTL (CLK1)
- Jitter RMS: 5 ps
- Phase Noise: -95 dBc/Hz at 100 Hz offset (125 MHz output)
- Lock Time (PLL): 3 ms
- Operating Temperature: -40°C to +85°C
- Power Consumption: Less than 5 mA in power-down
- Output Enable: Active low, with internal pull-up resistors
- Frequency Multipliers: Selectable via tri-level inputs (Sel0, Sel1, Sel2) for various ratios
- Housed in a 16-pin TSSOP package with Pb-Free marking
- Max Input Voltage: GND to Vpp
- Surge and ESD Protection: 2 kV Human Body Model
- Thermal Resistance: Junction-to-ambient 138°C (500 lfpm), Junction-to-case 33-36°C
- Aging: +20 ppm, Initial Accuracy: +20 ppm
- Reflow Soldering Temp: 265°C

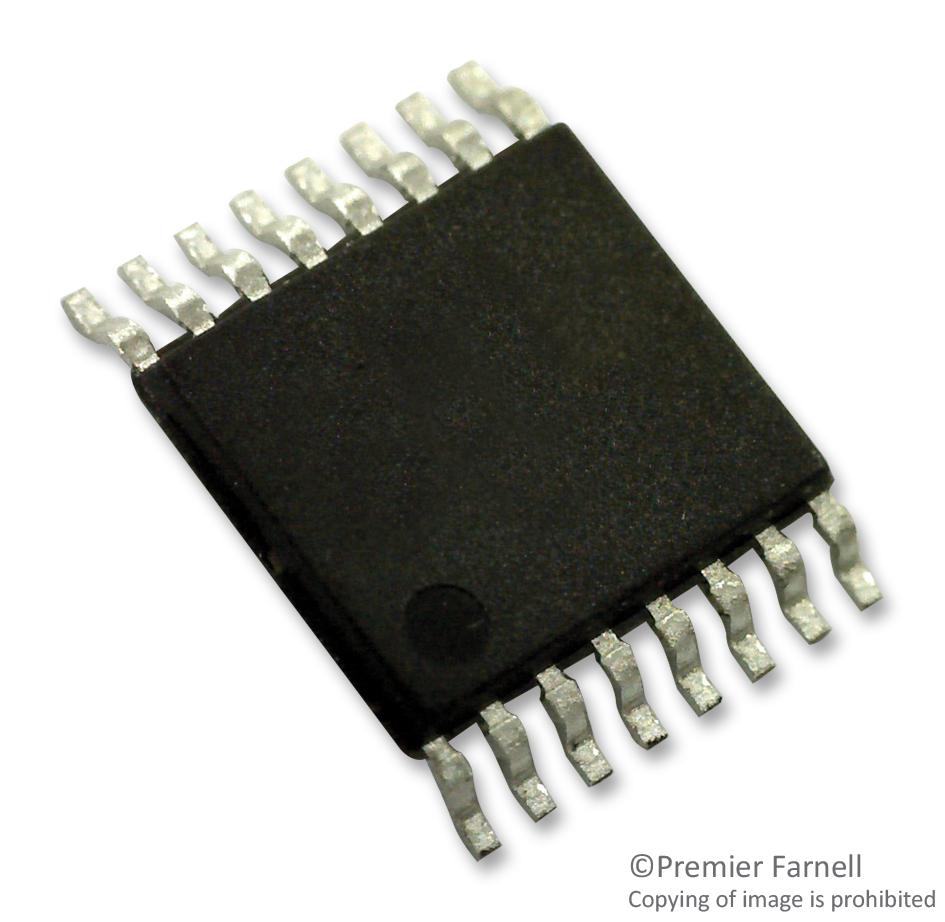

Buy the Buy ON Semiconductor NB3N3020 Clock Multiplier Part Number NB3N3020DTG Online
Purchase the ON Semiconductor NB3N3020 today for your timing and synchronization needs. This high-precision clock multiplier offers low jitter, differential LVPECL, and LVCMOS outputs, supporting input frequencies from 5 to 210 MHz. Its compact TSSOP-16 package and quick PLL lock time of 3 ms make it ideal for timing, clock distribution, and synchronization in industrial, telecom, and high-speed digital applications. Ensure stability and performance with this reliable, low-noise clock generation solution available now for fast delivery online.
Get ON Semiconductor NB3N3020 today—designed for high precision, low jitter, and reliable clock signal generation in complex timing systems.
