ONSEMI NIS6150MT2TXG Electronic Fuse
The NIS6150 is an efficient resettable electronic fuse designed for USB applications and automotive systems. It provides overcurrent, reverse current, and overvoltage protection, ensuring load safety and circuit reliability. Features include integrated reverse current protection, an adjustable output current limit with thermal shutdown, and IEC61000-4-2 Level 4 ESD protection up to +7 kV. The device offers fast response times for overvoltage clamps, internal temperature sensing, and supports latching or auto-retry options for thermal fault recovery. Its compact package and robust electrical specifications make it suitable for automotive, solid-state drives, motherboards, and other sensitive electronic circuits.
ONSEMI NIS6150MT2TXG Electronic Fuse Specifications:
- Input Voltage, steady-state: 0.3 to +10 V
- Output Voltage, steady-state: 0.3 to +20 V
- Maximum transient voltage: +10 V for 100 ms
- Maximum reverse voltage drop: 100 mV
- Overvoltage clamp levels: 5.7 - 6.5 V or 6.5 - 7.5 V (selectable)
- Continuous current: 10 A at 25°C
- Thermal shutdown temperature: 175°C
- ESD protection: IEC61000-4-2 Level 4 (up to +7 kV)
- Maximum power dissipation: 1.3 W
- Operating temperature range: -40°C to 125°C
- Junction-to-Air thermal resistance: 95°C/W
- Operational electrical characteristics: describe current limit, response times, and fault conditions
- Package: WDFNW10, 3x3 mm, Pb-Free, Halogen-Free

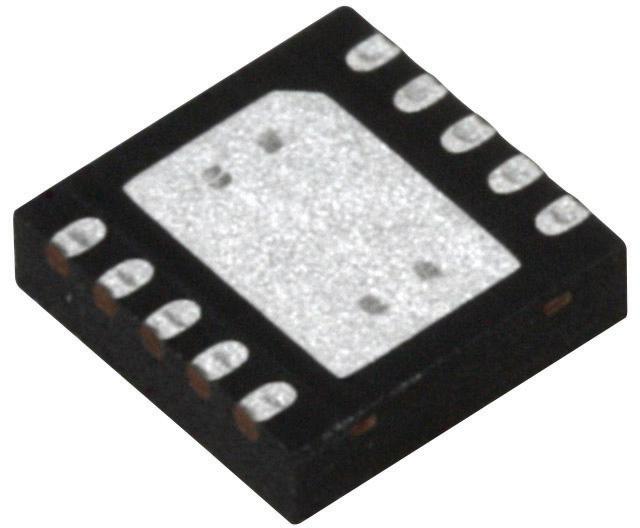

Buy the Buy ON Semiconductor NIS6150 Part Number NIS6150MT2TXG Online
Secure your electronic device with the ON Semiconductor NIS6150 resettable fuse, designed for USB and automotive circuits. This compact device provides comprehensive protection including overcurrent, reverse current, and overvoltage safeguards, ensuring circuit reliability and safety. Its fast overvoltage clamp response and thermal shutdown features prevent damage during transient events or overheating. Suitable for motherboards, SSDs, and infotainment systems, the NIS6150 offers latching or auto-retry options. Shop online now to ensure your projects benefit from top-tier protection and dependable operation.
Order your ON Semiconductor NIS6150MT2TXG resettable fuse today and ensure reliable protection with its fast response, overvoltage, and reverse current safeguards.
Frequently Asked Questions
Where can I buy ONSEMI NIS6150MT2TXG?
You can click on the BUY or RFQ button to purchase NIS6150MT2TXG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NIS6150MT2TXG?
You can download the NIS6150MT2TXG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NIS6150MT2TXG?
ONSEMI
