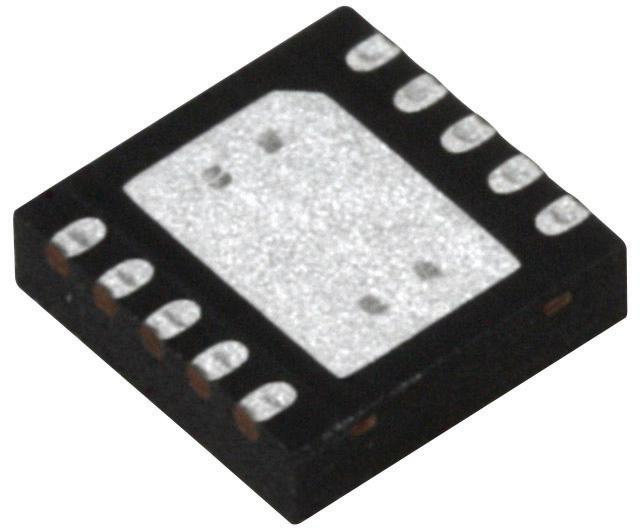

ONSEMI NIS6350MT1TXG Electronic Fuse
The NIS6350 is an efficient, resettable electronic fuse designed to protect USB applications, automotive systems, and solid-state drives against overcurrent, overvoltage, and thermal faults. It features adjustable current limit protection, integrated reverse current protection, and a fast response overvoltage clamp circuit, ensuring reliable operation during transient conditions. The device includes thermal shutdown, ultra-high ESD protection up to +7 kV, and digital fault status reporting through a FLAG pin. Suitable for complex electronics requiring precise load and power management with safety features compliant with AEC-Q100 standards.
ONSEMI NIS6350MT1TXG Electronic Fuse Specifications:
- Input Voltage, steady-state: -0.3 to +10 V
- Output Voltage, steady-state: 0.3 to +20 V
- Maximum Overvoltage Clamp: 56-75 V (Vout-clamp level varies with Vo_SEL)
- Continuous Current: 3 A at 25°C
- Thermal Shutdown Temperature: 150-200°C
- Total Power Dissipation: 1.3 W at 25°C
- Thermal Resistance Junction-to-Air: 95°C/W
- Electrostatic Discharge (ESD): Human Body Model +2 kV, IEC61000-4-2 Contact 47 kV
- Operating Temperature Range: -40°C to 125°C
- Shutdown and auto-retry functions available, with latch or auto-retry options
- Integrated reverse current block threshold: 100 mV (Vout - Vin)
- Overvoltage Response Time: 20 μs
- Built-in UVLO with adjustable turn-on voltage, hysteresis of 0.35 V
Buy the ON Semiconductor Series NIS6350 Electronic Fuse: NIS6350MT1TXG
Purchase the ON Semiconductor Series NIS6350 electronic fuse online today to ensure your circuits are protected against overcurrent, overvoltage, and thermal faults. Designed for USB ports, automotive systems, and SSDs, this resettable fuse offers adjustable current limits, fast transient response, and high ESD protection, all compliant with AEC-Q100 standards. Ideal for engineers seeking reliable, easy-to-integrate power protection that maintains system safety and durability across various demanding applications.
Order your ON Semiconductor Series NIS6350 MT1TXG resettable fuse today and safeguard your USB, automotive, and SSD applications with reliable protection features.
Frequently Asked Questions
Where can I buy ONSEMI NIS6350MT1TXG?
You can click on the BUY or RFQ button to purchase NIS6350MT1TXG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NIS6350MT1TXG?
You can download the NIS6350MT1TXG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NIS6350MT1TXG?
ONSEMI
