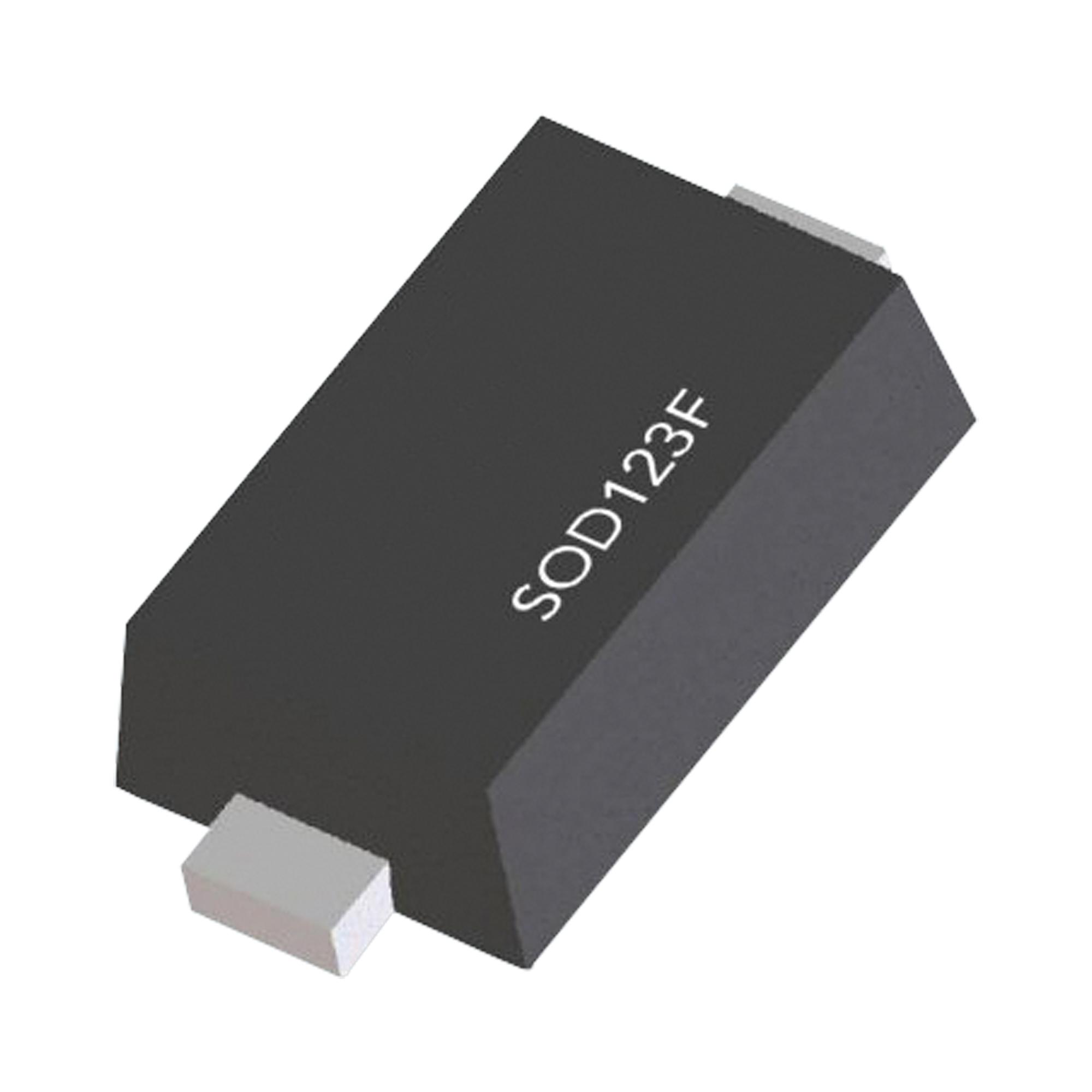

ONSEMI NRVS1DFL Surface Mount Rectifier
The NRVS1DFL is a surface-mount general-purpose rectifier designed for high-reliability applications. It features an ultra-thin profile with a maximum height of 1.08 mm, making it suitable for compact circuit designs. Compliant with UL 94V-0 flammability standards, RoHS, halogen-free, and Pb-free, this device is qualified for automotive use under AEC-Q101. It offers a Recurrent Peak Reverse Voltage of 400V, RMS Voltage of 140V, and an average forward current of 1A. Its thermal characteristics include a junction-to-ambient resistance of 140 °C/W, ensuring efficient heat dissipation and reliable performance in demanding environments.
ONSEMI NRVS1DFL Surface Mount Rectifier Specifications:
- Maximum Height: 1.08 mm
- UL Flammability: 94V-0
- RoHS Compliant, Halogen Free, Pb-Free
- Recurrent Peak Reverse Voltage: 400V
- RMS Voltage: 140V
- DC Blocking Voltage: 400V
- Average Forward Current: 1A
- Peak One Cycle Forward Current: 30A
- Operating and Storage Temperature Range: -55°C to +150°C
- Thermal Resistance Junction-to-Ambient: 140 °C/W
- Package: SOD-123F
- Thermal Characteristics measured on FR-4 PCB
Buy the Buy ON Semiconductor Rectifier Part Number NRVS1DFL Online
Purchase the ON Semiconductor NRVS1DFL surface-mount rectifier online today for high reliability and compact design. Suitable for automotive and industrial applications, it features an ultra-thin profile of 1.08 mm height, high voltage ratings of 400V, and an RMS voltage of 140V. Its Pb-free, halogen-free construction ensures eco-friendliness, while its automotive qualification under AEC-Q101 makes it ideal for demanding environments. Order now to benefit from fast delivery and genuine quality for your electronic projects and manufacturing needs.
Get ON Semiconductor NRVS1DFL today—designed for high-reliability, compact, surface-mount rectification in demanding electronic applications.
Frequently Asked Questions
Where can I buy ONSEMI NRVS1DFL?
You can click on the BUY or RFQ button to purchase NRVS1DFL from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NRVS1DFL?
You can download the NRVS1DFL datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NRVS1DFL?
ONSEMI
