ONSEMI SMUN5314DW1T1G Bias Resistor Transistor
The complementary bias resistor and transistor series integrates a single transistor with a monolithic bias network, reducing system cost and board space. Suitable for automotive and industrial applications, these devices are RoHS, halogen, and BFR free, and meet AEC-Q101 standards. They feature maximum ratings of 50V collector-base and collector-emitter voltages, 100mA continuous collector current, and operate within temperature ranges from -55°C to +150°C. Designed for efficient circuit design, they simplify biasing and improve reliability in compact electronic systems.
ONSEMI SMUN5314DW1T1G Bias Resistor Transistor Specifications:
- Collector-Base Voltage: 50 V
- Collector-Emitter Voltage: 50 V
- Collector Current: 100 mA
- Input Forward Voltage: 40 V
- Input Reverse Voltage: 6 V
- Total Device Dissipation (SOT-363): 187 mW at 25°C, 256 mW derated
- Thermal Resistance, Junction to Ambient: 670°C/W
- Storage Temperature Range: -55°C to +150°C
- Package Types: SOT-363, SOT-563, SOT-963
- RoHS, Halogen Free, BFR Free, AEC-Q101 Qualified
- Suitable for automotive and industrial use with low power dissipation
- Maximum operating temperature: 150°C
- Operating frequency: Up to 10 kHz
- Part Number: SMUN5314DW1T1G

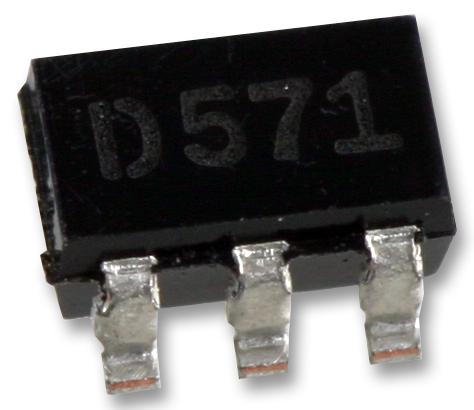

Buy the Buy ON Semiconductor NPN PNP Transistor Bias Resistor Series Part Number SMUN5314DW1T1G Online
Explore the ON Semiconductor SMUN5314DW1T1G bias resistor transistors designed to simplify circuit biasing, reduce component count, and save space in automotive and industrial electronics. These AEC-Q101 qualified devices combine a transistor with integrated resistors, offering enhanced reliability and performance. They are RoHS, halogen, and BFR free, ensuring compliance with environmental standards. With maximum ratings of 50 volts and 100 milliamps, they operate efficiently within a temperature range from -55°C to +150°C. Ideal for compact, high-reliability electronic systems requiring space conservation and design simplicity.
Get ON Semiconductor SMUN5314DW1T1G today—engineered for reliable biasing, space-saving, and automotive-grade rugged performance.
