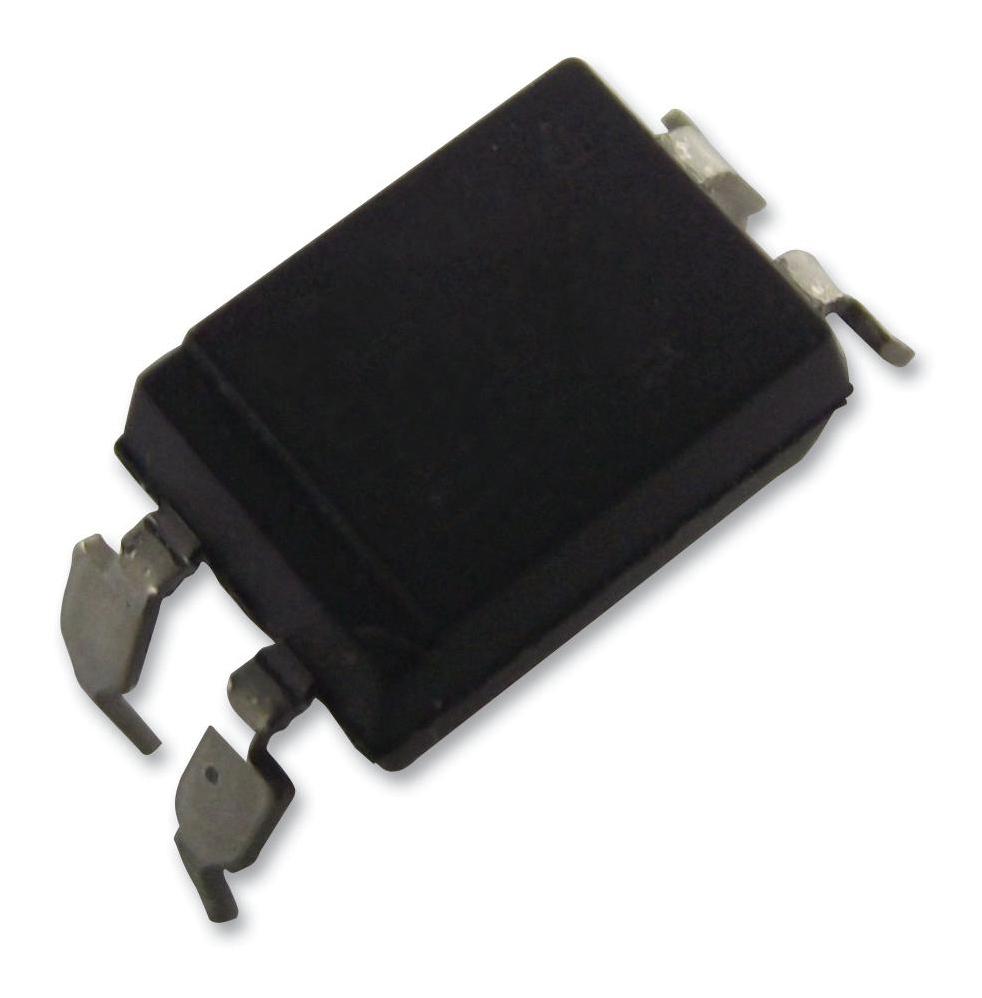

ONSEMI FODM3053R2NF098 Power Optocoupler
The FODM3053 series comprises compact 4-pin surface mount optocouplers designed for interfacing between electronic controls and power triacs. Specifically, the FODM3053 features a peak blocking voltage of 600V, making it suitable for static AC power switching, lamp ballasts, motor, and valve control applications. These optocouplers contain a GaAs infrared LED driving a silicon bilateral switch housed in a mini-flat package, with certifications pending, providing reliable isolation and control in industrial and consumer electronics with maximum operating temperature of 100°C.
ONSEMI FODM3053R2NF098 Power Optocoupler Specifications:
- Peak Blocking Voltage: 600V
- Package: 4-pin full pitch mini-flat
- Maximum Operating Temperature: 100°C
- Storage Temperature: -55°C to +150°C
- Forward Current (LED): 60mA
- Peak Forward Current: 1A
- Reverse Input Voltage: 3V
- Power Dissipation (LED): 100mW
- On-State RMS Current: 70mA
- Off-State Output Voltage: 600V
- UL, C-UL, VDE approvals pending
- Reflow Peak Temperature: 260°C
- Tape and Reel: 2500 units
Buy the Buy FAIRCHILD FODM3053R2NF098 Online
Purchase the FAIRCHILD FODM3053R2NF098 optocoupler online today to ensure reliable isolation and control in your AC power switching, motor, and valve control systems. Its compact design and high peak blocking voltage of 600V make it ideal for demanding industrial controls, lamp ballasts, and static switches. With certifications pending and maximum operating temperature of 100°C, this optocoupler offers robust performance, easy integration into various circuits, and efficient electrical isolation, providing peace of mind and streamlined assembly for your manufacturing or repair needs.
Buy FAIRCHILD FODM3053R2NF098 now and experience unmatched reliability and high-voltage switching performance in industrial applications.
Frequently Asked Questions
Where can I buy ONSEMI FODM3053R2NF098?
You can click on the BUY or RFQ button to purchase FODM3053R2NF098 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FODM3053R2NF098?
You can download the FODM3053R2NF098 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FODM3053R2NF098?
ONSEMI
